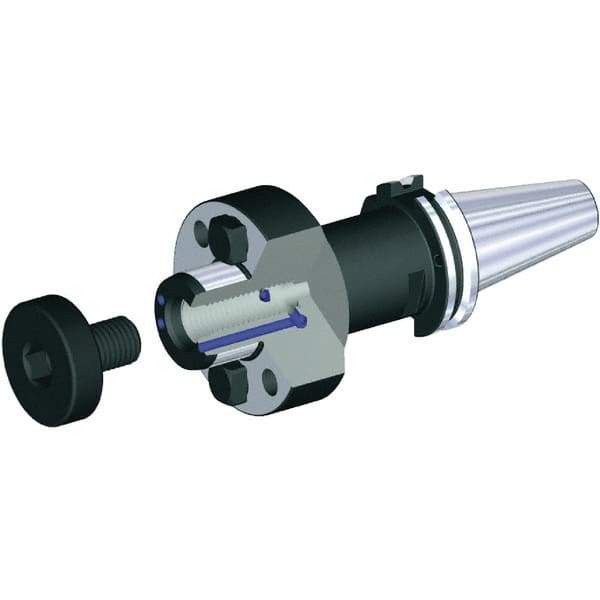

Kennametal - DIN69871-50 Taper Shank 27mm Pilot Diam Shell Mill Holder - 35mm Flange to Nose End Projection, 60mm Nose Diam, M12x1.75 Lock Screw, Through-Spindle & DIN Flange Coolant
Item #: 89668016
Brand: Kennametal
Model #: 3767849
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | DIN69871-50 |
| Pilot Diameter (mm) | 27.00 |
| Pilot Diameter (Decimal Inch) | 1.0630 |
| Projection Flange to Nose End (mm) | 35.00 |
| Projection Flange to Nose End (Decimal Inch) | 1.3780 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 60.00 |
| Nose Diameter (Decimal Inch) | 2.3622 |
| Coolant Type | Through-Spindle & DIN Flange |
| Lock Screw Thread Size | M12x1.75 |
