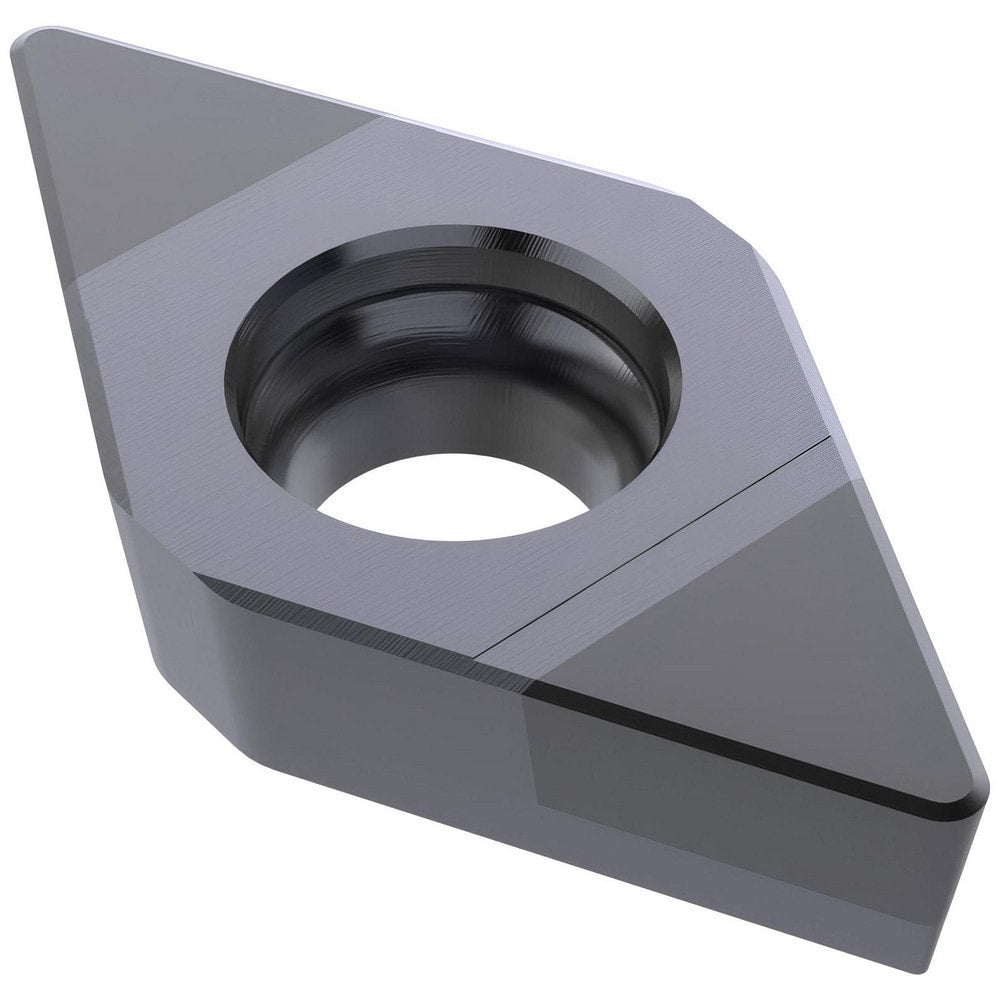

Turning Insert: DCGW21.51S-00625-L1-B, PCBN
Item #: 82760026
Brand: Seco
Model #: 10199375
Product Specifications
| ANSI Insert Code | DCGW21.51 |
| ISO Insert Code | DCGW070204 |
| Relief Angle | 7 |
| Insert Style | DCGW |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55 |
| Manufacturer Grade | CH2581 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | DCGW |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | PCBN |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Flat Top |
| Grade Characteristics | Hardened Materials (H) - High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Maximum Depth of Cut (Decimal Inch) | 0.0200 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6140 |
| Primary Workpiece Material Code | H |
| Iso Code | DCGW070204S-01525-L1-B |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 10199375 |
| Material Grade | CH2581 |
| Single or Multi Tipped | Multi Tipped |
| Lead Angle | 55 |
| Coating Classification | Uncoated |
| Chip Breaker | Flat Top |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | DCGW21.51S-00625-L1-B |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| Tip Length (Decimal Inch) | 0.1260 |
| ANSI Size Code | 21.51 |
| ISO Size Code | 070204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.51 |
| Country of Origin | Sweden |
