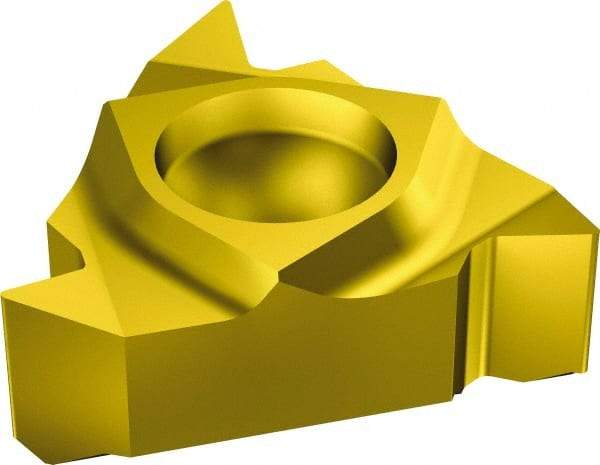

Sandvik Coromant - 166.0011 A Grade 4125, Internal Partial Profile 55° Threading Insert - 14 to 28 TPI Int Pitch, Right Hand Insert, Carbide
Item #: 89624761
Brand: Sandvik Coromant
Model #: 5742046
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 166.00 |
| Insert Size | 11 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | Partial Profile 55 Degrees |
| Manufacturer's Grade | 4125 |
| Internal Pitch/TPI | 14-28 TPI |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | R1660L11VW010014125 |
| Corner Radius (mm) | 0.11 |
| Corner Radius (Decimal Inch) | 0.0043 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1252 |
| Series | T-Max U-Lock |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | A |
| Manufacturers Catalog Number | 5742046 |
