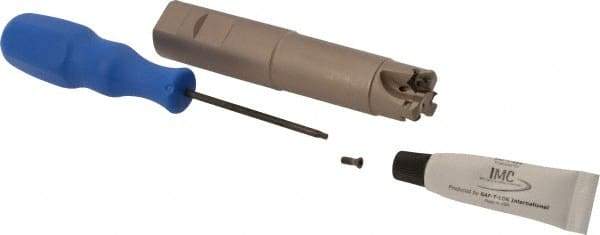

Iscar - 30° Lead Angle, 1" Max Cut Diam, 0.63" Min Cut Diam, 0.08" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, H600 WXCU 05 Insert Style, 5" Overall Length, Through Coolant, Straight Shank
Item #: 89605745
Brand: Iscar
Model #: 3106346
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6300 |
| Minimum Cutting Diameter (Decimal Inch) | 0.6300 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 30 |
| Overall Length (Decimal Inch) | 5.0000 |
| Insert Style | H600 WXCU 05 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.0800 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Toolholder Style | MF EWX |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 2.6500 |
| Weldon Flat | Yes |
