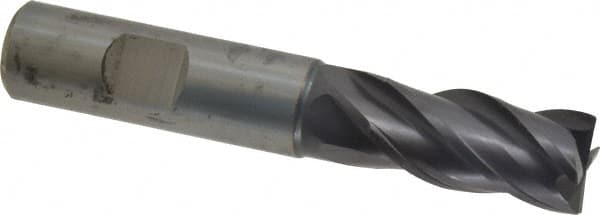

Square End Mill: 5/8'' Dia, 1.26'' LOC, 4 Flutes, Solid Carbide Single End, FIREX Finish, Spiral Flute, Variable Helix, Centercutting, RH Cut, RH Flute, Series 3732
Item #: 89478184
Brand: Guhring
Model #: 9037320160000
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6300 |
| Mill Diameter (mm) | 16.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 32.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | FIREX |
| Shank Diameter (mm) | 16.00 |
| Helix Angle | 35/38 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Variable Index | No |
| Extended Reach | No |
| Overall Length (mm) | 92.00 |
| Length Of Cut Range (Decimal Inch) | 1.2500 - 1.5000 |
| Shank Type | Weldon Flat |
| Length of Cut (Decimal Inch) | 1.2600 |
| Material Grade | Proprietary |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Length Type | Regular |
| Series | 3732 |
