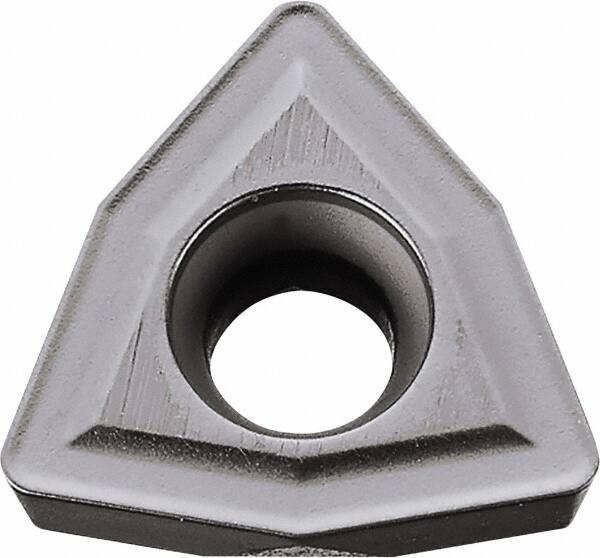

Kyocera - WCMX050308 M1 Grade TN60 Cermet Indexable Drill Insert - Uncoated, Trigon, 5/16" Inscribed Circle
Item #: 89392187
Brand: Kyocera
Model #: 8850489
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 050308 |
| Material | Cermet |
| Manufacturer's Grade | TN60 |
| Inscribed Circle (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Inch) | 1/32 |
| Shape | Trigon |
| Hole Diameter (Inch) | 1/8 |
| Relief Angle | 7 |
| Coating | Uncoated |
| Coating Process | Uncoated |
| Chipbreaker | M1 |
