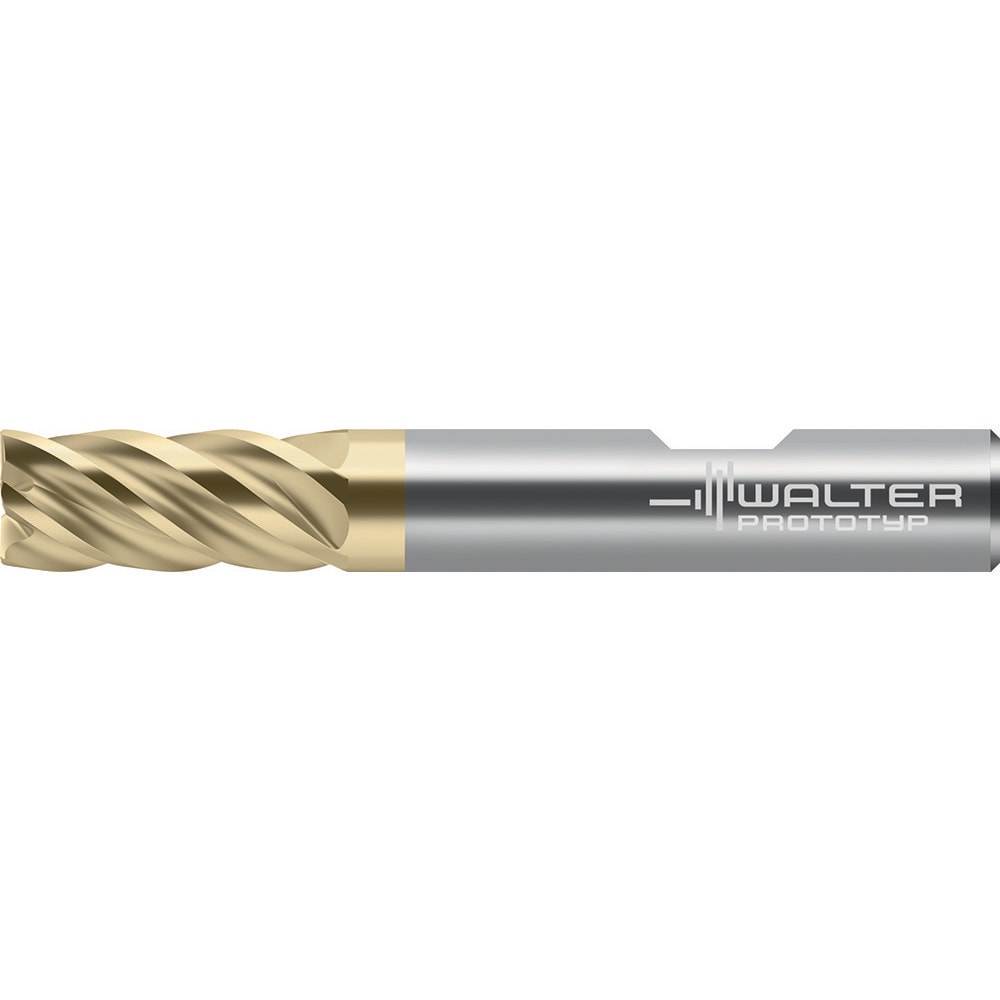

Square End Mill: 16.00 mm Dia, 32.0000 mm LOC, 5 Flute, Solid Carbide
Item #: 53448403
Brand: Walter-Prototyp
Model #: 8199098
Product Specifications
| Mill Diameter (mm) | 16.00 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 32.0000 |
| Shank Diameter (mm) | 16.0000 |
| Overall Length (mm) | 92.0000 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 38 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Super Alloys & Titanium |
| Secondary Workpiece Material Code | S; K; M |
| Coating/Finish | TiAlN/ZrN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Weldon Flat |
| Material Grade | Solid Carbide |
| Length Type | Standard |
| Reach Length (mm) | 32.00 |
| Shank Diameter Tolerance | h5 |
| Series | MD340 |
| UNSPSC Code | 27112803 |
