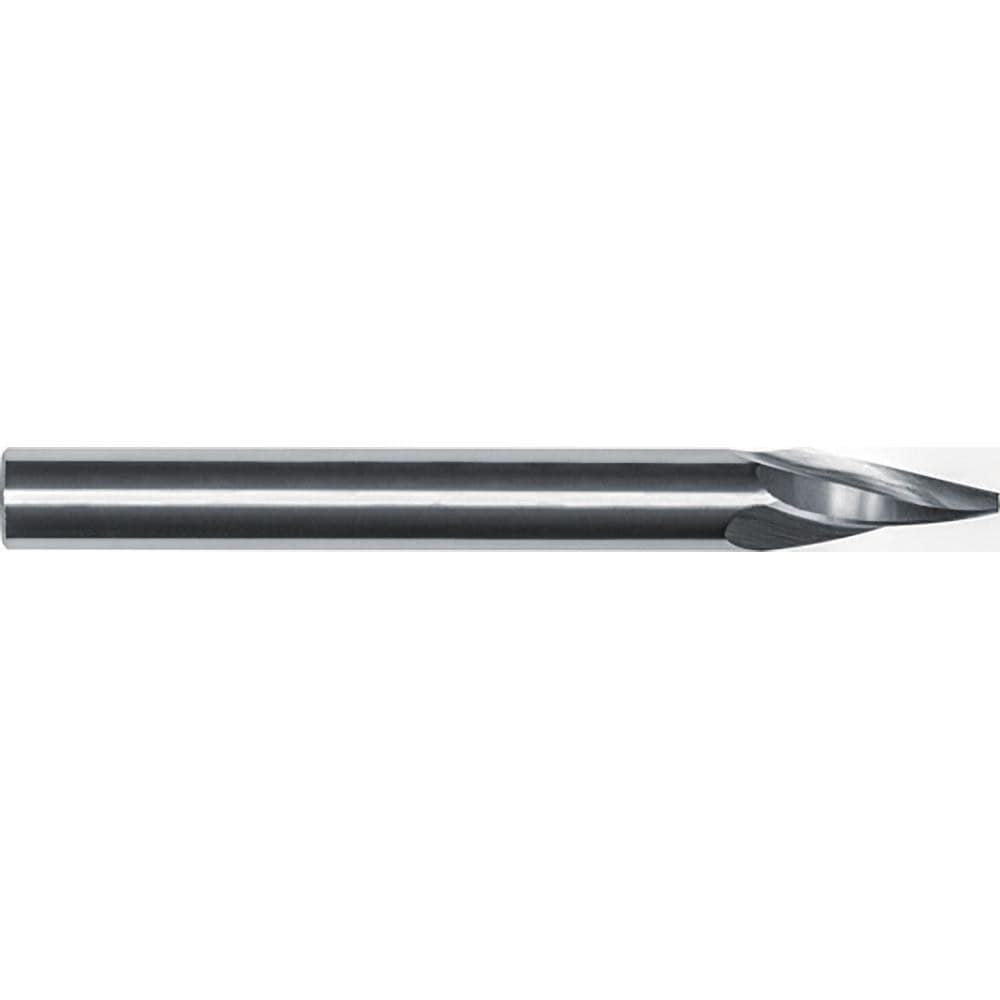

Tapered End Mill: 5 deg Angle per Side, 1/4" Small Dia, 1-1/4" LOC, 3 Flute, Tapered End
Item #: 60258464
Brand: Internal Tool
Model #: 69-3080-C
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1-1/4 |
| Taper Angle Per Side | 5.00 |
| End Mill Material | Solid Carbide |
| End Shape | Tapered |
| Flute Type | Helical |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Centercutting | No |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Small End Diameter (Decimal Inch) | 0.2500 |
| Small End Diameter (Inch) | 1/4 |
| Tip Diameter (Decimal Inch) | 0.2500 |
| Large End Diameter (Decimal Inch) | 0.5000 |
| Helix Angle | 15 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Series | 69 |
| Coating Classification | PVD |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Coolant Through | No |
| Coating/Finish | AlTiN |
| Number Of Flutes | 3 |
| Included Angle Degree | 10 |
| UNSPSC Code | 27112803 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1-1/4 |
| Taper Angle Per Side | 5.00 |
| End Mill Material | Solid Carbide |
| End Shape | Tapered |
| Flute Type | Helical |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Centercutting | No |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Small End Diameter (Decimal Inch) | 0.2500 |
| Small End Diameter (Inch) | 1/4 |
| Tip Diameter (Decimal Inch) | 0.2500 |
| Large End Diameter (Decimal Inch) | 0.5000 |
| Helix Angle | 15 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Series | 69 |
| Coating Classification | PVD |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Coolant Through | No |
| Coating/Finish | AlTiN |
| Number Of Flutes | 3 |
| Included Angle Degree | 10 |
| UNSPSC Code | 27112803 |
| MSC Part # | 60258464 |
| Mfr Part # | 69-3080-C |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
