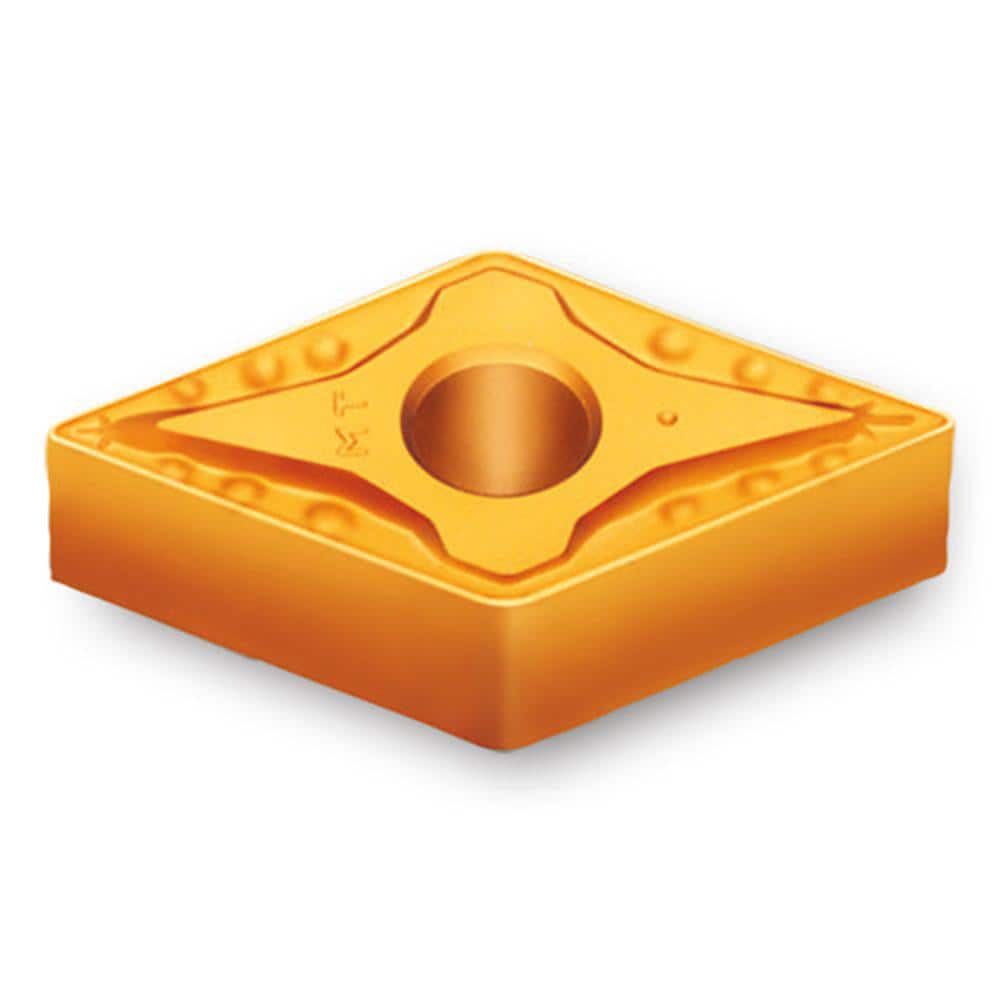

Turning Insert: DNMG432MT TT5080, Solid Carbide AlTiN & TiN Finish, Neutral, 0.5790″ Long, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, 55.0 ° N/A Diamond, Series DNMG
Item #: 89189567
Brand: Ingersoll Cutting Tools
Model #: 5523112
Product Specifications
| Insert Style | DNMG |
| Insert Shape Code | D |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT5080 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | DNMG |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.5790 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | DNMG432MTTT5080 |
| Iso Code | DNMG150408MT TT5080 |
| Chip Breaker | MT |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Coating/Finish | AlTiN; TiN |
