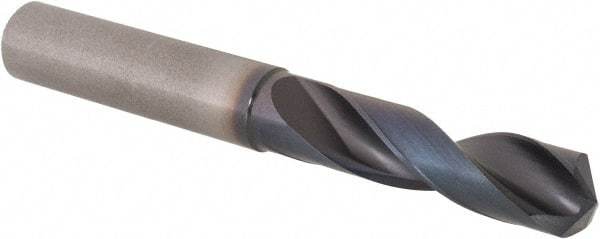

Sumitomo - 31/64" 135° Solid Carbide Screw Machine Drill Bit - TiAlCr/TiSi Finish, 1.8504" Flute Length, 3.937" OAL
Item #: 89162465
Brand: Sumitomo
Model #: U101181
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum chromium (TiAlCr) and titanium silicon (TiSi) is a super multi-layered coating. The TiAlCr/TiSi coating is used for general purpose applications without coolant thru
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.4844 |
| Drill Bit Size (Inch) | 31/64 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlCr/TiSi |
| Flute Length (Decimal Inch) | 1.8504 |
| Overall Length (Decimal Inch) | 3.9370 |
| Flute Length x Diameter Ratio | 2xD |
| Shank Diameter (Decimal Inch) | 0.5156 |
| Shank Length (Decimal Inch) | 2.0079 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Configuration | Tapered |
| Series/List | MDW-GS |
