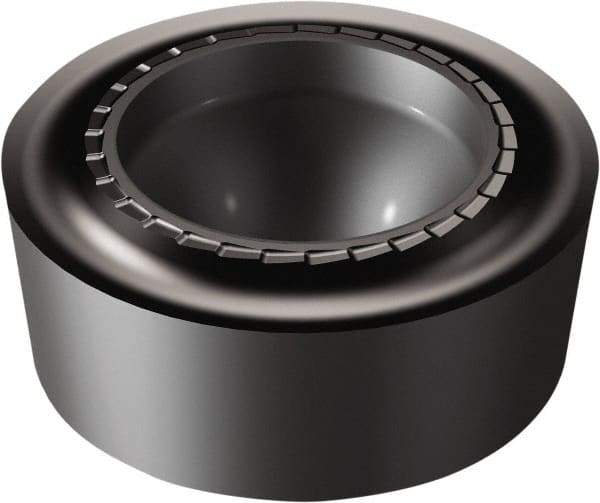

Sandvik Coromant - RCMT1204M0 SM Grade 1105 Carbide Turning Insert - TiAlN Finish, Round, 12mm Inscr Circle, 3/16" Thick
Item #: 89112296
Brand: Sandvik Coromant
Model #: 5740581
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 1204M0 |
| Material | Carbide |
| Length (mm) | 4.76 |
| Length (Inch) | 3/16 |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Manufacturer's Grade | 1105 |
| Coating | TiAlN |
| Chip Breaker | SM |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1875 |
| ISO Number | RCMT 12 04 M0-SM 1105 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | RCMT 12 04 M0-SM 1105 |
| Primary Workpiece Material | S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Insert Holding Method | Screw |
| Cutting Width (mm) | 12.00 |
| FullRadius | Yes |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Round |
