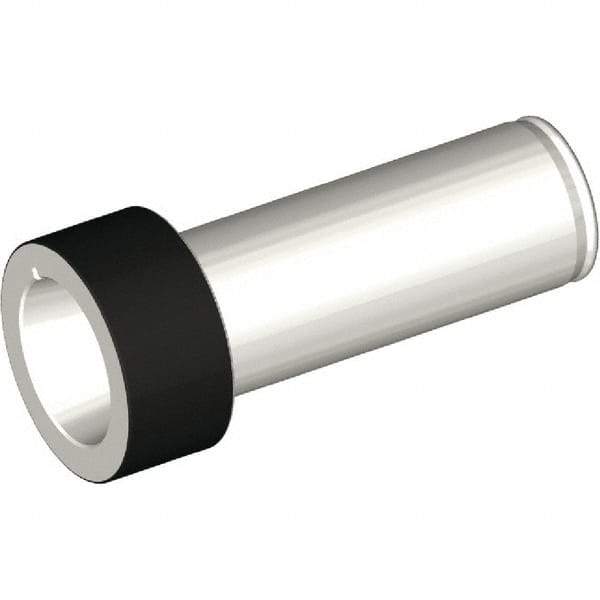

Kennametal - KR32 Inside Modular Connection, Boring Head Straight Shank - Modular Connection Mount, 4.1339 Inch Overall Length, 0.8858 Inch Projection, 1.8307 Inch Nose Diameter
Item #: 89110357
Brand: Kennametal
Model #: 3562941
Exact Tooling IR#: 04
Features and Benefits
Straight shank arbors can be held in end mill adapters or collet adapters.
| Product Specifications | |
|---|---|
| Shank Type | Straight Shank |
| Mount Type | Modular Connection |
| Inside Modular Connection Size | KR32 |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Projection (Decimal Inch) | 0.8858 |
| Projection (mm) | 22.50 |
| Nose Diameter (mm) | 46.50 |
| Nose Diameter (Decimal Inch) | 1.8307 |
| Overall Length (mm) | 105.00 |
| Overall Length (Decimal Inch) | 4.1339 |
| Through Coolant | Yes |
