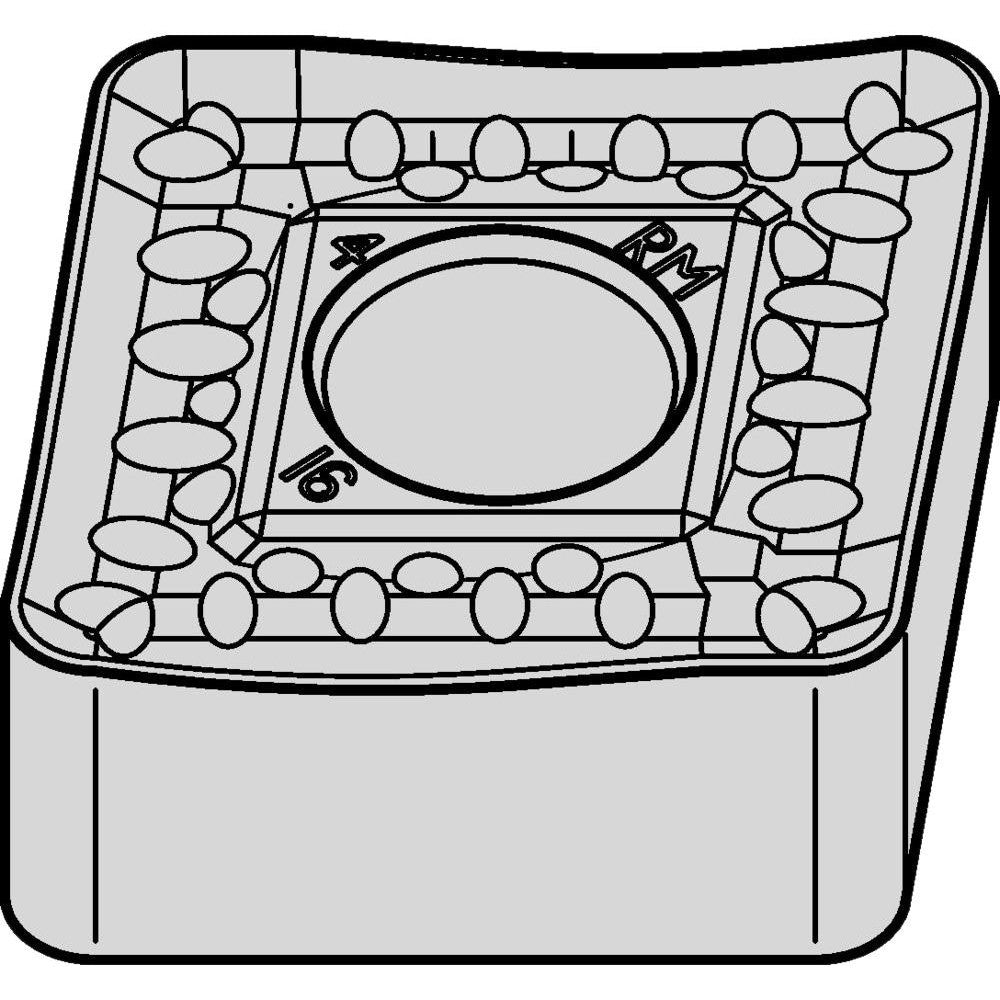

Turning Insert: CNMM643RM KCP25C, Carbide
Item #: 84703875
Brand: Kennametal
Model #: 7088887
Product Specifications
| ANSI Insert Code | CNMM |
| ISO Insert Code | CNMM |
| Relief Angle | 0.000 |
| Insert Style | CNMM |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Included Angle | 80.00 |
| Manufacturer Grade | KCP25C |
| Coating/Finish | MT-TiCN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness | 6.35 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | Kenloc™ Inserts |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (mm) | 19.05 |
| Insert Material | Carbide |
| Insert Shape | Diamond 80° |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 3/4 |
| Clearance Code | N |
| Tolerance Code | M |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.7616 |
| Insert Length (mm) | 19.34 |
| Chip Breaker | RM |
| Rake Angle | 0 |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Width (mm - 2 Decimals) | 19.05 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 643 |
| Country of Origin | UNITED STATES |
