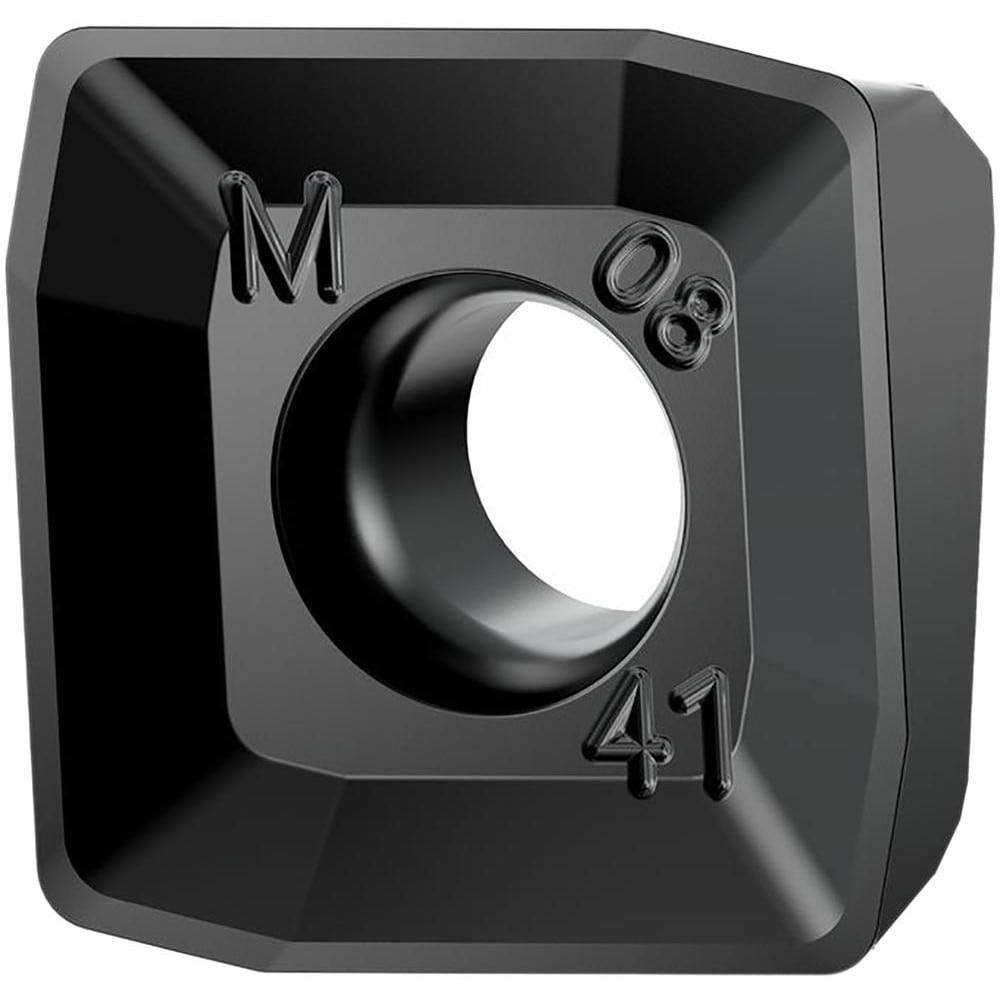

Milling Insert: XDPT120520ERM41 KC522M, Carbide
Item #: 84710789
Brand: Kennametal
Model #: 7142295
Product Specifications
| Insert Style | Square |
| Insert Size | 12 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | KC522M |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2189 |
| Thickness (mm) | 5.5600 |
| Coating/Finish | AlTiN |
| Relief Angle | 12.000 |
| Inscribed Circle (Decimal Inch) | 0.4791 |
| Inscribed Circle (mm) | 12.17 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Maximum Depth of Cut (mm) | 2.50 |
| Series | 7792 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.4000 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Cutting Edge Effective Length (mm) | 12.17 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4791 |
| Rake | Positive |
| Ansi Code | XDPT120520ERM41 |
| Iso Code | XDPT120520ERM41 |
| Rake Angle | 4.000 |
| Manufacturers Catalog Number | XDPT120520ERM41 KC522M |
| Cutter Series Compatibility | 7792VX12 |
| Chip Breaker | M41 |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 12.17 |
| Width (Decimal Inch - 4 Decimals) | 0.4791 |
| Width (mm - 2 Decimals) | 12.17 |
| Length (Decimal Inch - 4 Decimals) | 0.4791 |
| Country of Origin | UNITED STATES |
