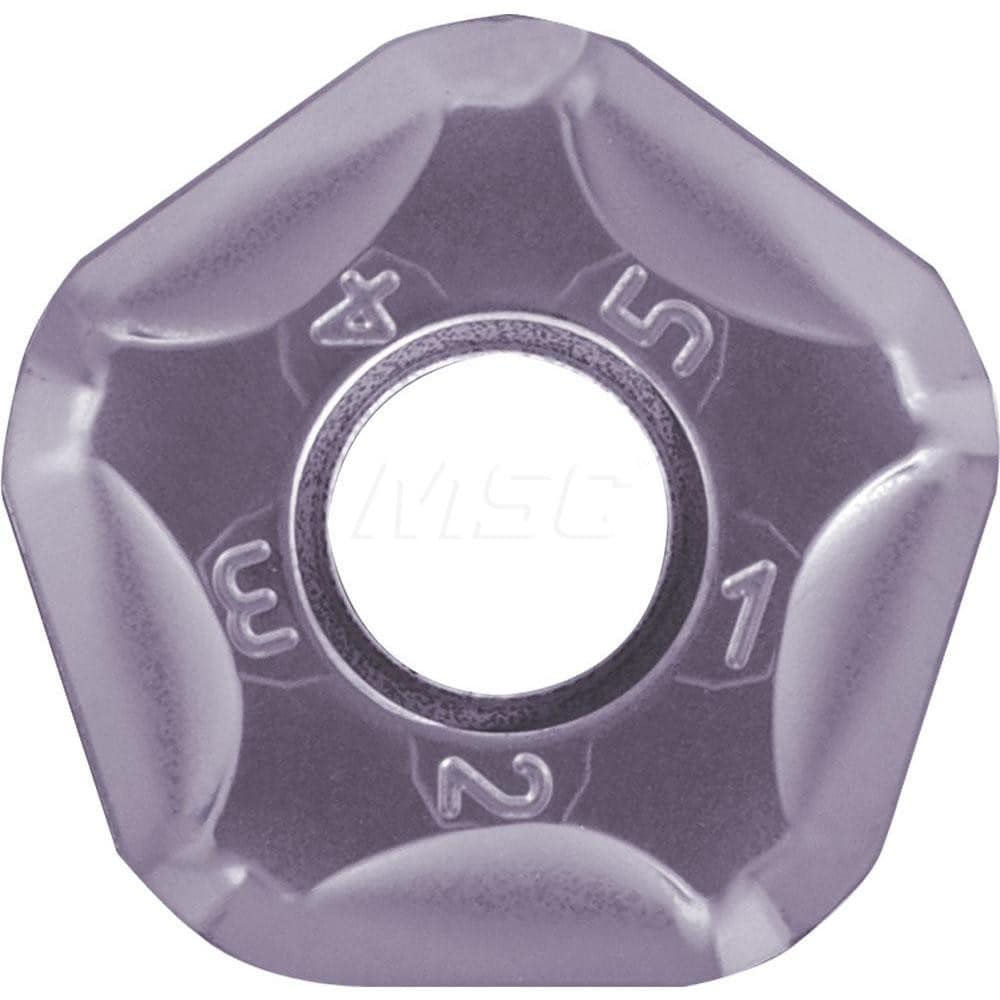

Milling Insert: PNMU1205ANER-GM PR1210, Solid Carbide
Item #: 78294519
Brand: Kyocera
Model #: TKA05050
Product Specifications
| Insert Style | PNMU |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Pentagon |
| Manufacturer Grade | PR1210 |
| Number Of Cutting Edges | 10 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2188 |
| Coating/Finish | MEGACOAT |
| Relief Angle | 0.00 |
| Insert Size Code | 1205 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.7079 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Series | MFPN |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.24 |
| Hole Diameter (Decimal Inch) | 0.2441 |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron; Superalloys |
| Secondary Workpiece Material Code | S; K; N |
| Ansi Code | PNMU1205ANERGMPR1210 |
| Iso Code | PNMU1205ANER-GM |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | PNMU1205ANERGM |
| Cutter Series Compatibility | MFPNR |
| Chip Breaker | ANER-GM |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Cast Iron; Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 108 |
| Width (Decimal Inch - 4 Decimals) | 0.7079 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7079 |
| Country of Origin | VARIOUS |
