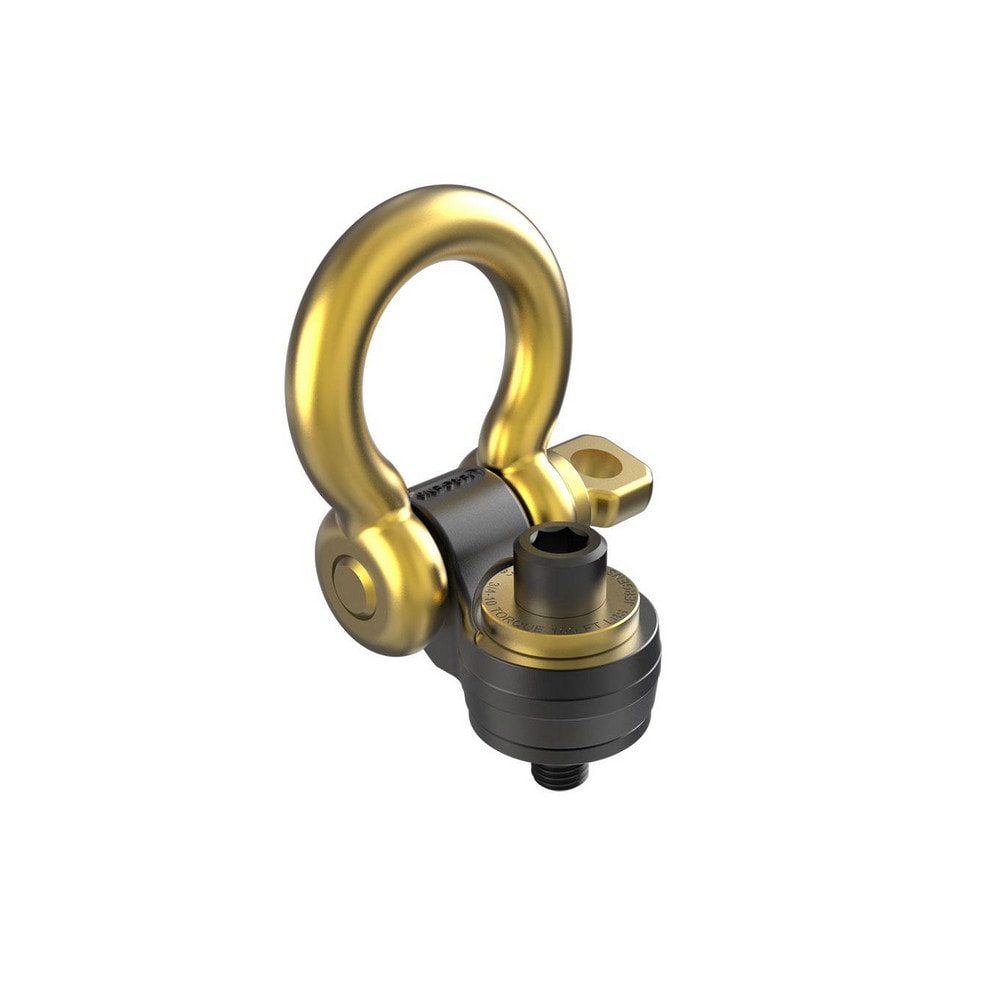

Flip-Flop Hoist Ring: Screw-On, 4850 kg Capacity
Item #: 79050019
Brand: Jergens
Model #: 47925
Product Specifications
| Hoist Ring Type | Flip-Flop |
| Load Capacity (kg) | 4850 |
| Thread Size | M30 |
| Radius (mm) | 35.00 |
| Radius (Decimal Inch) | 1.3780 |
| Thread Length (Inch) | 1-13/16 |
| Thread Length (Decimal Inch) | 1.8100 |
| Ring Height (mm) | 135.00 |
| Ring Height (Decimal Inch) | 5.3150 |
| Material | Alloy Steel |
| Ring Thickness (mm) | 25.40 |
| Ring Thickness | 1.0000 |
| Overall Length (mm) | 245.5000 |
| Overall Length (Decimal Inch) | 9.6700 |
| Ring External Width (Inch) | 4.7500 |
| Ring External Width (mm) | 120.80 |
| Ring Internal Width (mm) | 70.00 |
| Ring Internal Width (Inch) | 2.7560 |
| Torque | 590.000 |
| Finish | Black Oxide |
| Material Grade | Alloy Steel |
| Mount Type | Screw-On |
| Number Of Mounting Holes | 1.000 |
| Standards | ASME B30.26 and MIL-STD-209 |
| Ring Opening (Decimal Inch) | 2.76 |
| Flange Diameter (Decimal Inch) | 3.19 |
| Ring Outside Diameter (Decimal Inch) | 2.3750 |
| Hex Size (mm) | 22.000 |
| Ring Width (mm) | 120.80 |
| UNSPSC Code | 24101600 |
| Pin Length (Decimal Inch) | 4.3125 |
| Ring Width (Inch) | 4-3/4 |
| Ring Width (Decimal Inch) | 4.7500 |
| Clevis Height (mm) | 25 |
| Head/Holder Diameter (Fractional Inch) | 1-47/64 |
| Clevis Width (Inch) | 6-1/8 |
| Mounting Surface Diameter (mm) | 30.00 |
| Flange Diameter (mm) | 81.00 |
| Clevis Height (Inch) | 1 |
| Pin Diameter (mm) | 25.4000 |
| Clevis Width (mm) | 155 |
| Ring Opening (mm) | 70.00 |
| Country of Origin | UNITED STATES |
