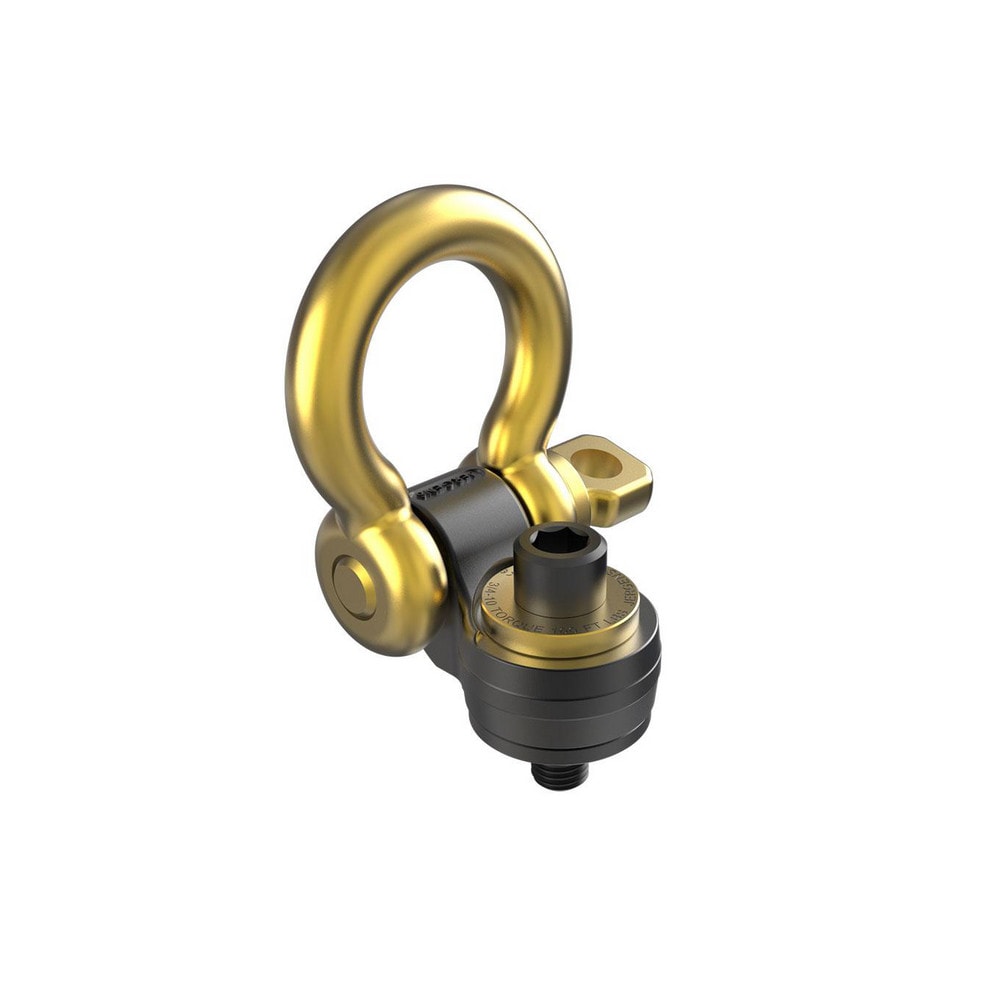

Flip-Flop Hoist Ring: Bolt-On, 2500 lb Capacity
Item #: 79049557
Brand: Jergens
Model #: 47914
Product Specifications
| Hoist Ring Type | Flip-Flop |
| Load Capacity (Lbs) | 2500 |
| Thread Size | 5/8-11 |
| Radius (mm) | 19.05 |
| Radius (Decimal Inch) | 0.75 |
| Thread Length (Inch) | 1 |
| Thread Length (Decimal Inch) | 1 |
| Ring Height (mm) | 69.85 |
| Ring Height (Decimal Inch) | 2.75 |
| Material | Alloy Steel |
| Ring Thickness (mm) | 12.7 |
| Ring Thickness | 0.5 |
| Overall Length (mm) | 123.5 |
| Overall Length (Decimal Inch) | 4.86 |
| Ring External Width (Inch) | 2.5 |
| Ring External Width (mm) | 63.4 |
| Ring Internal Width (mm) | 38.1 |
| Ring Internal Width (Inch) | 1.5 |
| Torque | 81.349 |
| Finish | Black Oxide |
| Material Grade | Alloy Steel |
| Mount Type | Bolt-On |
| Number Of Mounting Holes | 1 |
| Standards | ASME B30.26 and MIL-STD-209 |
| Ring Opening (Decimal Inch) | 1.5 |
| Flange Diameter (Decimal Inch) | 1.50 |
| Ring Outside Diameter (Decimal Inch) | 1.25 |
| Ring Width (mm) | 63.4 |
| UNSPSC Code | 24101600 |
| Pin Length (Decimal Inch) | 2.25 |
| Ring Width (Inch) | 2-1/2 |
| Hex Size (Inch) | 1/2 |
| Ring Width (Decimal Inch) | 2.5 |
| Mounting Surface Diameter (Decimal Inch) | 0.625 |
| Clevis Height (mm) | 13 |
| Head/Holder Diameter (Fractional Inch) | 57/64 |
| Clevis Width (Inch) | 2-31/32 |
| Mounting Surface Diameter (mm) | 16 |
| Flange Diameter (mm) | 38 |
| Clevis Height (Inch) | 1/2 |
| Pin Diameter (mm) | 12.7 |
| Clevis Width (mm) | 75 |
| Ring Opening (mm) | 38.1 |
| Country of Origin | UNITED STATES |
