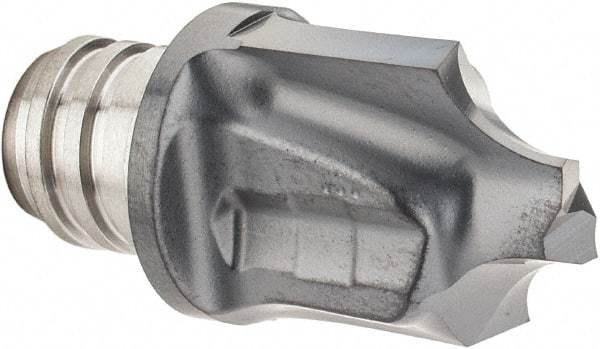

Iscar - MM HR Grade IC908 Carbide Concave Radius Milling Tip Insert - TiAlN Finish, 2 Flutes, 0.185" Cutting Diam, 0.472" Depth of Cut, 0.614" Extension, 0.157" Cnr Rad
Item #: 88542691
Brand: Iscar
Model #: 5604101
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM HR |
| Milling Tip Type | Concave Radius |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.1850 |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Depth of Cut (Decimal Inch) | 0.4720 |
| Number of Flutes | 2 |
| Coating | TiAlN |
| Milling Tip Full Description | Concave Radius |
| Corner Radius (Decimal Inch) | 0.1570 |
| Coating Process | PVD |
| Extension From Holder (Decimal Inch) | 0.6140 |
| Thread Size | T08 |
| Manufacturers Catalog Number | MM HR4.0/156-4.7-2T08 |
