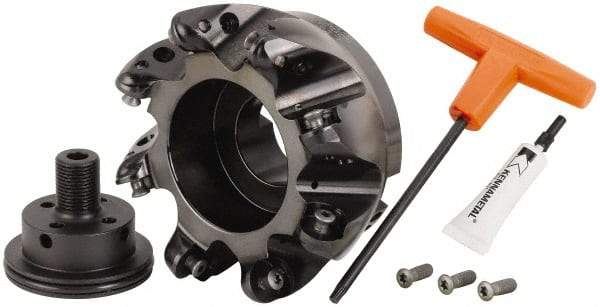

Kennametal - 8" Cut Diam, 12.7mm Max Depth, 2-1/2" Arbor Hole, 8 Inserts, RCGT 86... Insert Style, Indexable Copy Face Mill - BMD800 Cutter Style, 8,500 Max RPM, 2-1/2 High, Series KSRM
Item #: 88449152
Brand: Kennametal
Model #: 2610696
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 203.20 |
| Cutting Diameter (Inch) | 8 |
| Cutting Diameter (Decimal Inch) | 8.0000 |
| Maximum Depth of Cut (mm) | 12.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Arbor Hole Diameter (mm) | 63.50 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Overall Height (mm) | 63.50 |
| Overall Height (Inch) | 2-1/2 |
| Overall Height (Decimal Inch) | 2.5000 |
| Series | KSRM |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | RCGT 86... |
| Cutter Style | BMD800 |
| Maximum RPM | 8500 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 5.0000 |
| Insert Inscribed Circle (Inch) | 1 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RCGT 86ELF |
