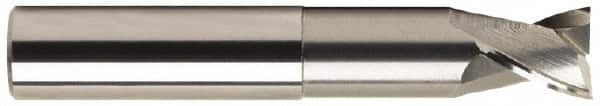

Square End Mill: 1/2'' Dia, 1/2'' LOC, 1/2'' Shank Dia, 4'' OAL, 2 Flutes, Solid Carbide Single End, Uncoated, Spiral Flute, 30 ° Helix, Centercutting, RH Cut, RH Flute, Series 2024
Item #: 88369608
Brand: OSG
Model #: 20240500
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 1/2 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/2 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 4 |
| Helix Angle | 30 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | Yes |
| Length Of Cut Range (Decimal Inch) | 0.5000 - 0.6000 |
| Length of Cut (Decimal Inch) | 0.5000 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Length Type | Long |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Neck Diameter (Decimal Inch) | 0.4960 |
| Reach Length (Inch) | 2-1/8 |
| Series | 2024 |
