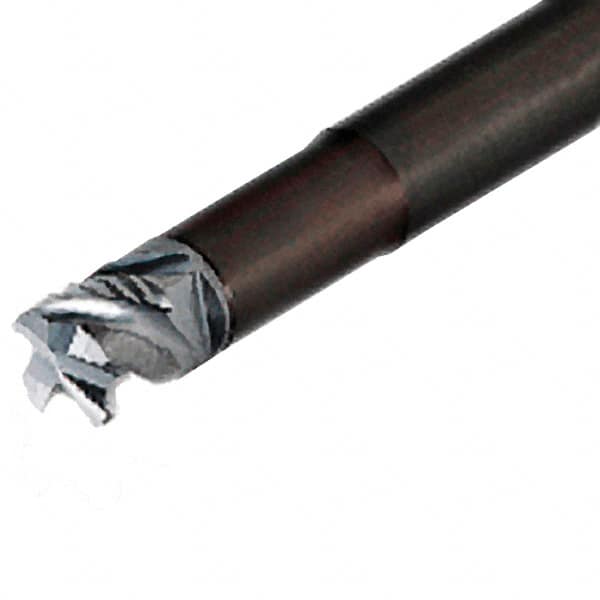

Iscar - Multimaster 20mm 90° Shank Milling Tip Insert Holder & Shank - T12 Neck Thread, 120mm OAL, Steel MM S-A Tool Holder
Item #: 88304928
Brand: Iscar
Model #: 3105657
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 90 Degree Shank |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Neck Thread Size | T12 |
| Toolholder Material | Steel |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 2.6260 |
| Effective Length (mm) | 70.00 |
| Effective Length (Decimal Inch) | 2.7559 |
| Milling Tip Style | BCM-MM, HCE-MM, HCM-MM, HM90 E90A-MM-10, HP E90AN-MM-07, MM EB, MM EC-4, MM ERS, MM HBR, MM HCD |
| Shank Shape | Straight |
| Toolholder Style | MM S-A |
