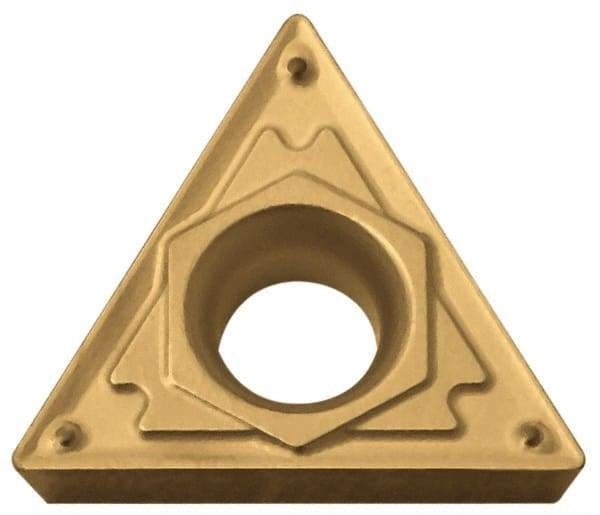

Kyocera - TCMT21.52 HQ Grade CA5525 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 1/4" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 88240213
Brand: Kyocera
Model #: 8819988
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 21.52 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | CA5525 |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | C7 |
| Chip Breaker | HQ |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Rake | Positive |
| Rake Angle | 5 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
