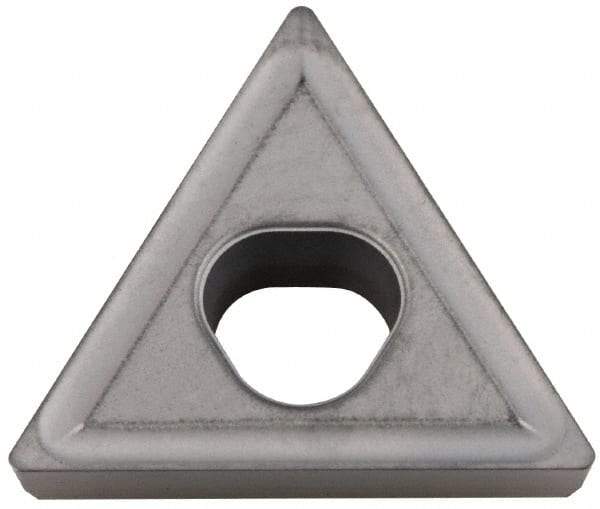

Seco - TPMM321 46 Grade 883 Carbide Turning Insert - Uncoated, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 88047071
Brand: Seco
Model #: 09125
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMM |
| Insert Size | 321 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 883 |
| Coating | Uncoated |
| Material Grade | C2 |
| Chip Breaker | 46 |
| Hole Diameter (Decimal Inch) | 0.1650 |
| Relief Angle | 11 |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | H; K; N |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Triangle |
