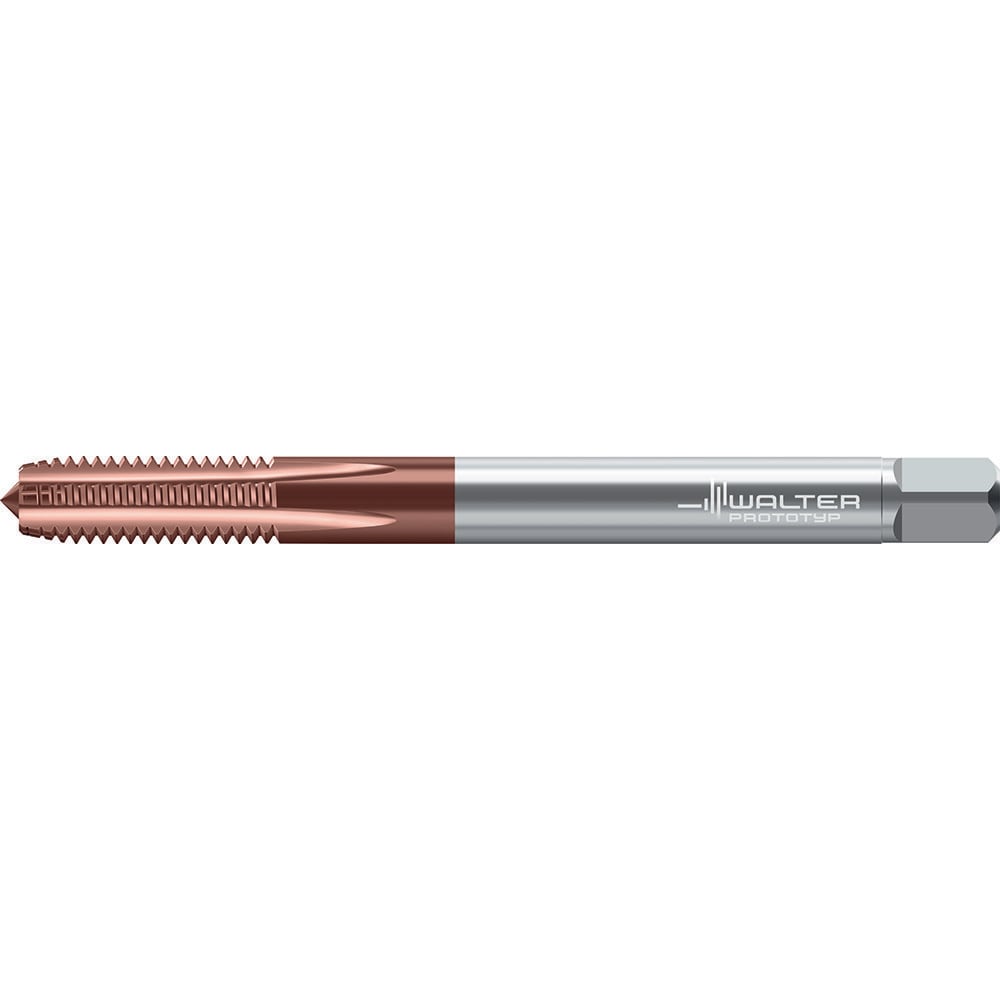

Straight Flute Tap: 1/8-28 G, 5 Flute, Semi-Bottoming Chamfer, NORMAL Class of Fit, Solid Carbide, AlTiSiN Finish
Item #: 53456729
Brand: Walter-Prototyp
Model #: 8205992
Product Specifications
| Tap Type | Straight Flute |
| Thread Size (Inch) | 1/8-28 |
| Overall Length (mm) | 92.02 |
| Overall Length (Decimal Inch) | 3.6228 |
| Chamfer | Semi-Bottoming |
| Thread Standard | G(BSP) |
| Material | Carbide |
| Thread Length (Inch) | 0.9252 |
| Thread Length (mm) | 23.50 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Square Size (Decimal Inch) | 0.3150 |
| Square Size (mm) | 8.00 |
| Series | TC388 |
| Coolant Through | No |
| Square Length (Decimal Inch) | 0.4331 |
| Coating/Finish | AlTiSiN |
| Number Of Flutes | 5 |
| UNSPSC Code | 23241600 |
