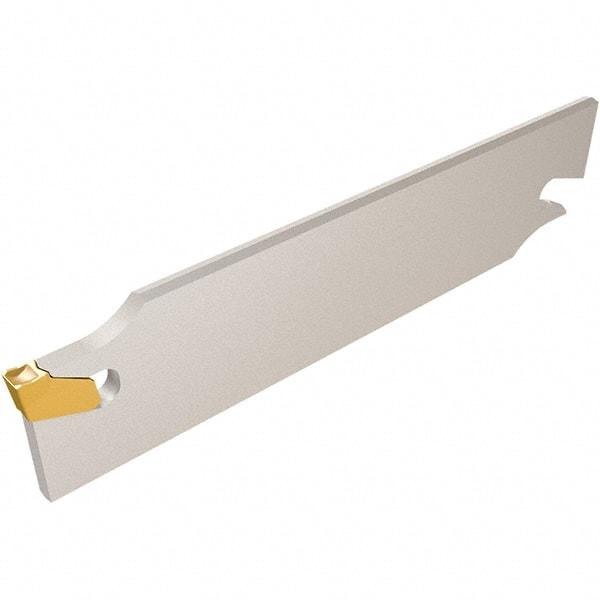

Iscar - 1.2" Groove Width, Right Hand Cut, SGFH Indexable Grooving Blade - GFN-J, GFR/L-J Insert Style, Series Self-Grip
Item #: 87975652
Brand: Iscar
Model #: 2301237
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 1.20 |
| Minimum Groove Width (Decimal Inch) | 0.0472 |
| Blade Style | SGFH |
| Series | Self-Grip |
| Maximum Workpiece Diameter (mm) | 18.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.7087 |
| Blade Height (mm) | 19.00 |
| Blade Height (Decimal Inch) | 0.7480 |
| Blade Width (mm) | 0.93 |
| Blade Width (Decimal Inch) | 0.0366 |
| Maximum Groove Width (mm) | 1.20 |
| Maximum Groove Width (Decimal Inch) | 0.0472 |
| Overall Length (mm) | 86.00 |
| Overall Length (Decimal Inch) | 3.3858 |
| Insert Style | GFN-J; GFR/L-J |
| Complete Insert Compatibility | GFN 1.2J; GFN 1.2JS |
