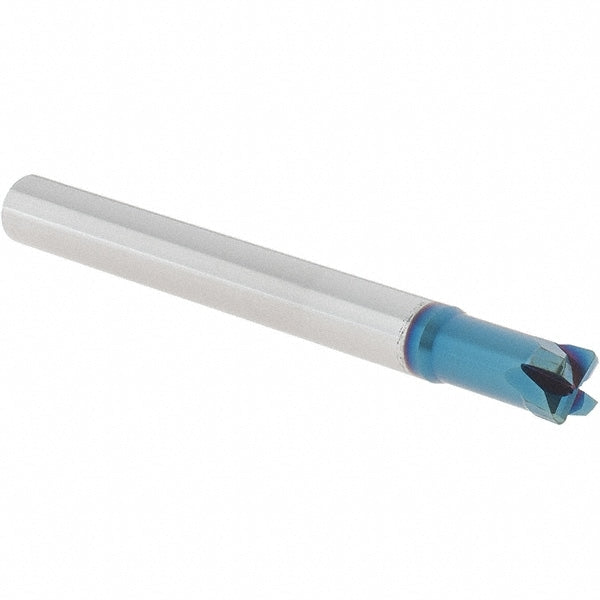

Corner Radius End Mill: 6.00 mm Dia, 2.50 mm LOC, 4 Flute, Solid Carbide
Item #: 66614363
Brand: YG-1
Model #: G859060
Product Specifications
| Mill Diameter (mm) | 6.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 2.50 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Length Type | Stub |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Neck Diameter (mm) | 5.40 |
| Reach Length (mm) | 12.00 |
| Mill Diameter Tolerance | 0.0000 to -0.0008 in |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Hard Material; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; H |
| Material Grade | Micrograin |
| Series | G859 |
| Mill Diameter (mm) | 6.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 2.50 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Length Type | Stub |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Neck Diameter (mm) | 5.40 |
| Reach Length (mm) | 12.00 |
| Mill Diameter Tolerance | 0.0000 to -0.0008 in |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Hard Material; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; H |
| Material Grade | Micrograin |
| Series | G859 |
| MSC Part # | 66614363 |
| Mfr Part # | G859060 |
| Country of Origin Country of Origin is subject to change | South Korea |
