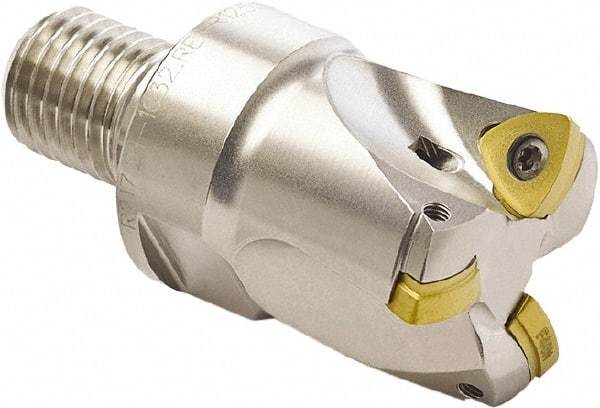

Seco - 16mm Cut Diam, 0.024" Max Depth, M8 Modular Connection Indexable High-Feed End Mill - Screw Holding Method, 218.19-080 Insert, R217.21 Toolholder
Item #: 87827242
Brand: Seco
Model #: 03277
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6300 |
| Maximum Depth of Cut (Decimal Inch) | 0.0240 |
| Shank Type | Modular Connection |
| Modular Connection Size | M8 |
| Number of Cutter Inserts | 2 |
| Insert Style | 218.19-080 |
| Toolholder Style | R217.21 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Minimum Cutting Diameter (Decimal Inch) | 0.3540 |
| Maximum RPM | 53400 |
| Through Coolant | NonThrough Coolant |
