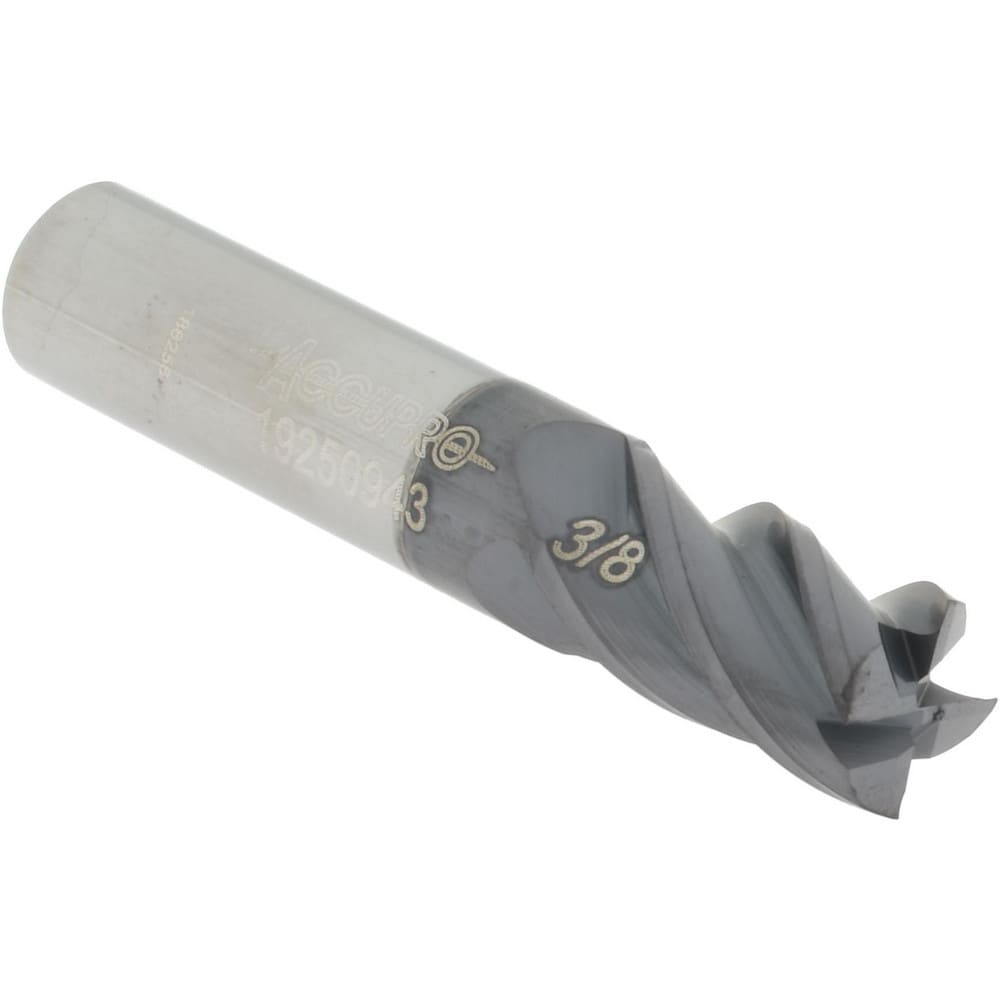

Square End Mill: 3/8" Dia, 5/8" LOC, 4 Flute, Solid Carbide
Item #: 19250943
Brand: Accupro
Model #: 14505812
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Mill Diameter (Inch) | 3/8 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 5/8 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN+ |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 40 |
| Coating/Finish | AlTiN+ |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Micrograin |
| Length Type | Stub |
| Length Of Cut Range (Decimal Inch) | 0.6000 - 0.7000 |
| Mill Diameter Tolerance | +0.0000 to -0.0020 in |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
| Series | ASQSC4-ATP-CC-40H |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
