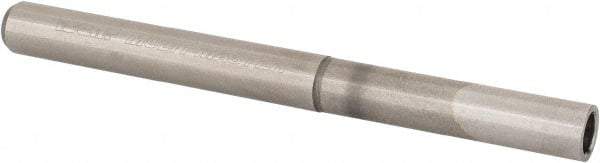

Iscar - Multimaster 0.312" 90° Stepped Shank Milling Tip Insert Holder & Shank - 0.3" Neck Diam, T05 Neck Thread, 3-1/2" OAL, Carbide MM S-A Tool Holder
Item #: 87706925
Brand: Iscar
Model #: 3103503
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 90 Degree Stepped Shank |
| Shank Diameter (Decimal Inch) | 0.3120 |
| Neck Diameter (Decimal Inch) | 0.3000 |
| Neck Thread Size | T05 |
| Toolholder Material | Carbide |
| Overall Length (Decimal Inch) | 3.5000 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 1.4500 |
| Effective Length (Decimal Inch) | 1.5000 |
| Milling Tip Style | MM EB, MM EC-4, MM HBR, MM HCR, MM TS-N |
| Shank Shape | Straight |
| Toolholder Style | MM S-A |
