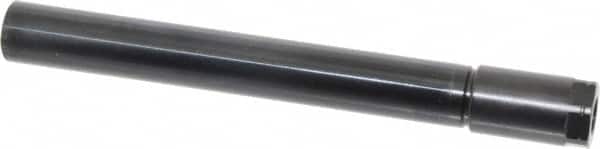

Parlec - 1/32" to 25/64" Capacity, 1.686" Projection, Straight Shank, DA200 Collet Chuck - 7.186" OAL, 3/4" Shank Diam
Item #: 87696001
Brand: Parlec
Model #: EXT750
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Double Angle |
| Collet Series | DA200 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 3/4 |
| Projection (Decimal Inch) | 1.6860 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 1/32 |
| Minimum Collet Capacity (Decimal Inch) | 0.0313 |
| Minimum Collet Capacity (mm) | 0.79 |
| Maximum Collet Capacity (mm) | 9.92 |
| Maximum Collet Capacity (Inch) | 25/64 |
| Maximum Collet Capacity (Decimal Inch) | 0.3906 |
| Overall Length (Decimal Inch) | 7.1860 |
| Shank Length (Decimal Inch) | 5.5000 |
| Hex Diameter (Decimal Inch) | 0.8120 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0004 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 0.8100 |
