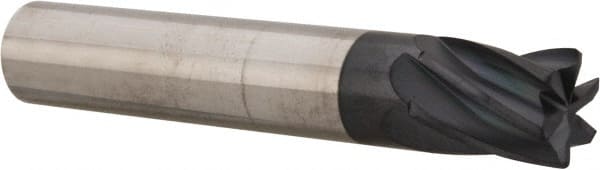

Square End Mill: 1'' Dia, 1-1/4'' LOC, 1'' Shank Dia, 4'' OAL, 10 Flutes, Solid Carbide Single End, AlTiN Finish, Spiral Flute, 25 ° Helix, Centercutting, RH Cut, RH Flute
Item #: 87657334
Brand: Accupro
Model #: 1025S1000-C11
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number Of Flutes | 10 |
| Length of Cut (Inch) | 1-1/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1 |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 4 |
| Helix Angle | 25 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 1.2500 - 1.5000 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
| Mill Diameter Tolerance | +0.000/-0.002 in |
