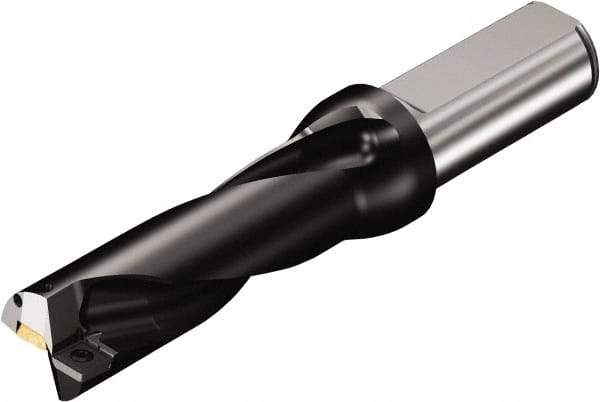

Sandvik Coromant - 143mm Max Drill Depth, 3xD, 46mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Flange Shank
Item #: 87634010
Brand: Sandvik Coromant
Model #: 5765484
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 46.00 |
| Drill Diameter (Decimal Inch) | 1.8110 |
| Maximum Drill Depth (mm) | 143.00 |
| Maximum Drill Depth (Decimal Inch) | 5.6299 |
| Shank Type | Flange |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.8110 |
| Maximum Drill Diameter (mm) | 48.60 |
| Overall Length/Projection (mm) | 246.00 |
| Overall Length/Projection (Decimal Inch) | 9.6850 |
| Insert Compatibility | 880-080508H-C-GM; 880-0805W08H-P-GM |
| Flute Length (mm) | 138.00 |
| Flute Length (Decimal Inch) | 5.4331 |
| Body Length (Decimal Inch) | 6.8984 |
| Body Length (mm) | 175.22 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 1.30 |
