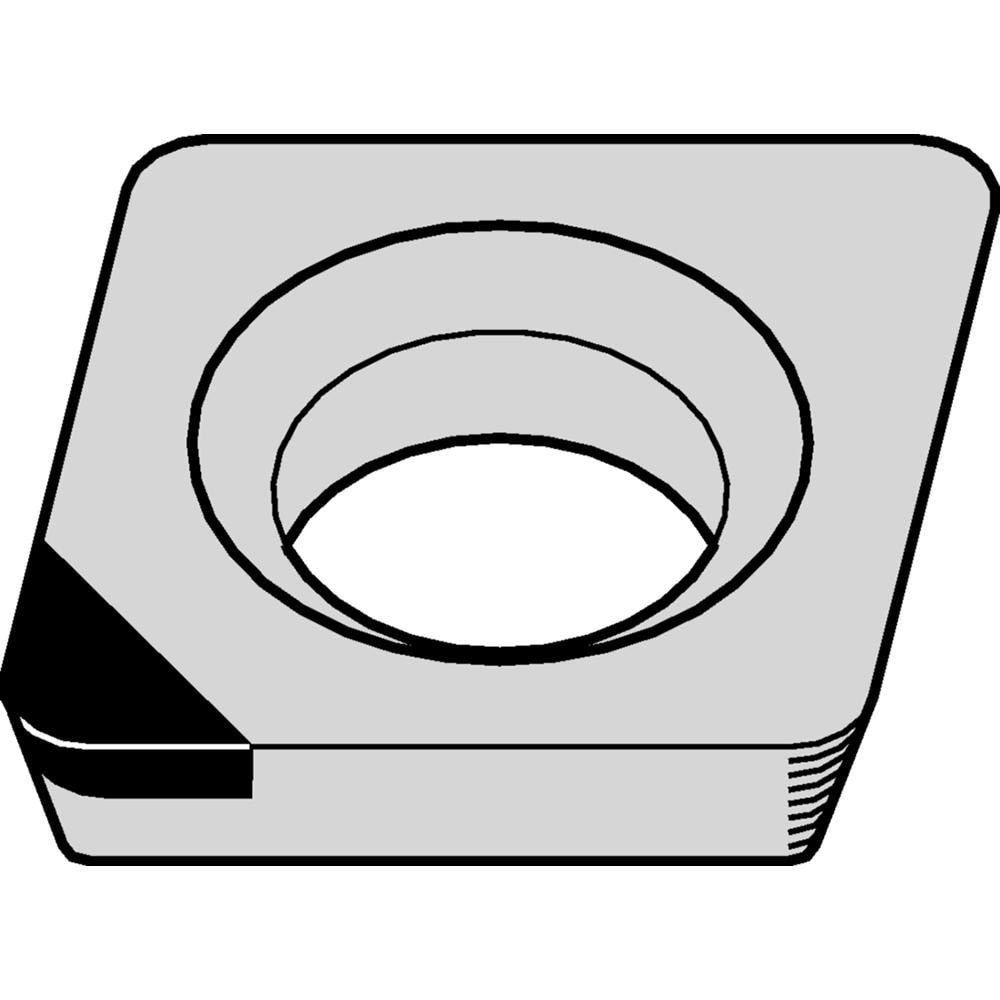

Brand: Widia / Part #: 2830769
Item #: 94125010
Brand: Widia
Model #: 2830769
Product Specifications
| Insert Style | CDHB |
| Insert Shape Code | C |
| Insert Size Code | 12061 |
| Insert Shape | Diamond |
| Coating/Finish | Uncoated |
| Manufacturer Grade | WDN15U |
| Corner Radius (Decimal Inch) | 0.0150 |
| Insert Material | PCD |
| Hole Diameter (Decimal Inch) | 0.0839 |
| Maximum Depth of Cut (Decimal Inch) | 0.0794 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Clearance Code | D |
| Tolerance Code | H |
| Included Angle | 80.00 |
| Relief Angle | 15.000 |
| Series | CDHB |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.1587 |
| Number Of Cutting Edges | 1 |
| Ansi Code | CDHB12061M |
| Iso Code | CDHBS4T004M |
| Manufacturers Catalog Number | CDHB12061M |
| Cutting Direction | Neutral |
| Single or Multi Tipped | Single Tipped |
| Coating Classification | Uncoated |
| Chip Breaker | None |
| Style | CDHB |
| Width (Decimal Inch - 4 Decimals) | 0.1563 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning; Boring |
