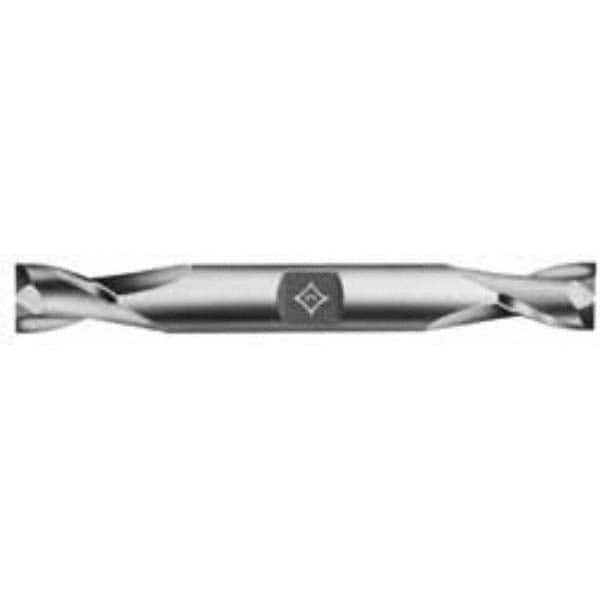

Square End Mill: 7/8'' Dia, 1-9/16'' LOC, 7/8'' Shank Dia, 6-1/8'' OAL, 2 Flutes, High Speed Steel Double End, Uncoated, Spiral Flute, 30 ° Helix, Centercutting, RH Cut, RH Flute, Series HD-2
Item #: 87390332
Brand: Cleveland
Model #: C42084
Product Specifications
| Mill Diameter (Inch) | 7/8 |
| Mill Diameter (Decimal Inch) | 0.8750 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 1-9/16 |
| End Mill Material | High Speed Steel |
| End Type | Double |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 7/8 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 6-1/8 |
| Helix Angle | 30 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 1.5000 - 2.0000 |
| Length of Cut (Decimal Inch) | 1.5625 |
| Shank Diameter (Decimal Inch) | 0.8750 |
| Overall Length (Decimal Inch) | 6.1250 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Length Type | Regular |
| Series | HD-2 |
