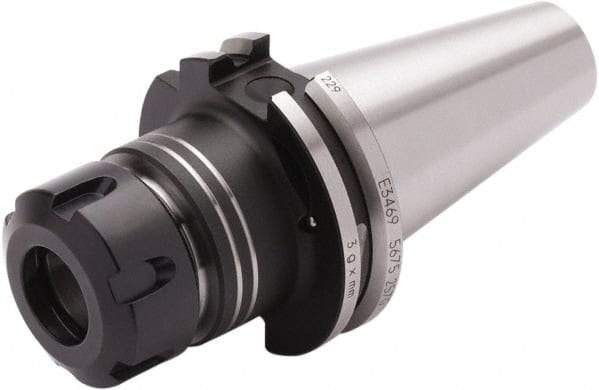

Seco - 0.078" to 0.787" Capacity, 90mm Projection, DIN69871-50 Taper Shank, ER32 Collet Chuck - 7.547" OAL
Item #: 87188223
Brand: Seco
Model #: 66051
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Taper Shank |
| Taper Size | DIN69871-50 |
| Projection (mm) | 90.00 |
| Projection (Decimal Inch) | 3.5430 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0780 |
| Maximum Collet Capacity (Decimal Inch) | 0.7870 |
| Overall Length (Decimal Inch) | 7.5470 |
| Nose Diameter (Decimal Inch) | 1.9680 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 1.9680 |
