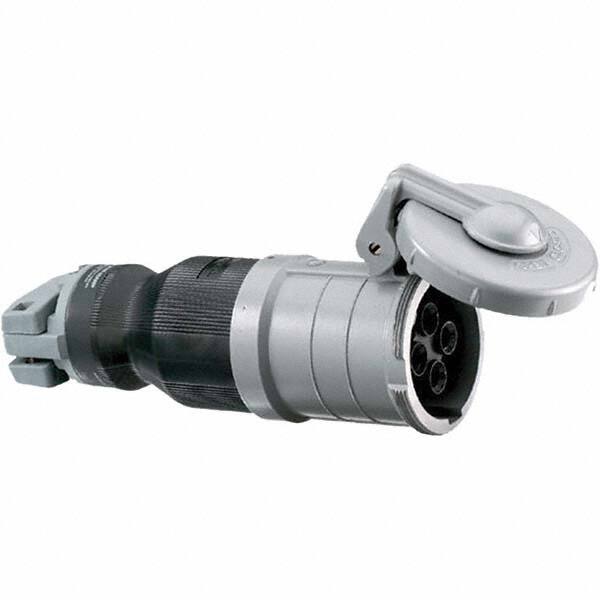

Hubbell Wiring Device-Kellems - Pin & Sleeve Plugs & Connectors Connector Type: Connector Pin Configuration: 1
Item #: 79202446
Brand: Hubbell Wiring Device-Kellems
Model #: HBL460CS1W
Product Specifications
Pin & Sleeve Plugs & Connectors; Connector Type: Connector ; Pin Configuration: 1 ; Number of Poles: 3 ; Amperage: 60 ; Voltage: 600 VAC/250 VDC ; Maximum Cord Grip Diameter (Decimal Inch): 1.4500
| Connector Type | Connector |
| Pin Configuration | 1 |
| Number of Poles | 3 |
| Amperage | 60 |
| Voltage | 600 VAC/250 VDC |
| Maximum Cord Grip Diameter (Decimal Inch) | 1.4500 |
| Grounding Style | Self-Grounding |
| Minimum Cord Grip Diameter (Decimal Inch) | 1/2 |
| Resistance Features | Watertight |
| Color | Gray; Black |
| Overall Length (Decimal Inch) | 9.9000 |
| Number of Phases | 1 |
| Ingress Protection Rating | UL Type 3, 4, 4X, While in US with Cover Closed |
| Material | Thermoplastic |
| Standards Met | UL 1686 C1; Type 4X; UL Listed; CSA Certified |
