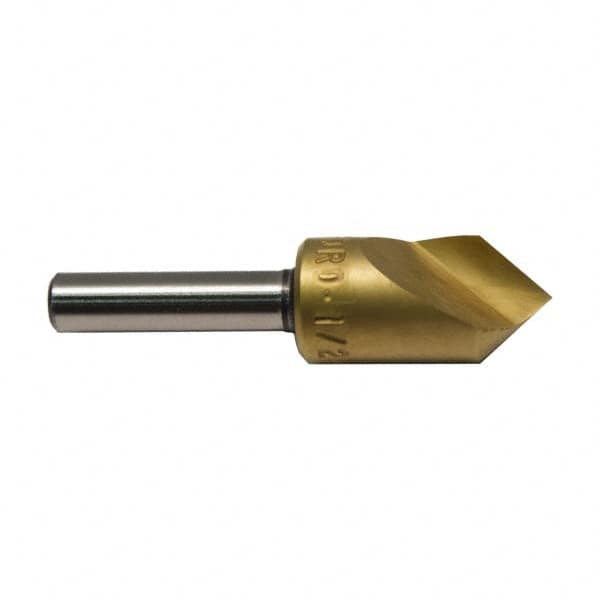

M.A. Ford - 5/8" Head Diam, 1/4" Shank Diam, 1 Flute 90° High Speed Steel Countersink
Item #: 77640282
Brand: M.A. Ford
Model #: 61T062503
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Head Diameter (Inch) | 5/8 |
| Head Diameter (Decimal Inch) | 0.6250 |
| Number of Flutes | 1 |
| Included Angle | 90 |
| Countersink Material | High Speed Steel |
| Countersink Finish/Coating | TiN |
| Minimum Cutting Diameter (Inch) | 0.0600 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Maximum Cutting Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 2-1/4 |
| Overall Length (Decimal Inch) | 2.2500 |
| Countersink Application | Countersinking |
| PSC Code | 5133 |
