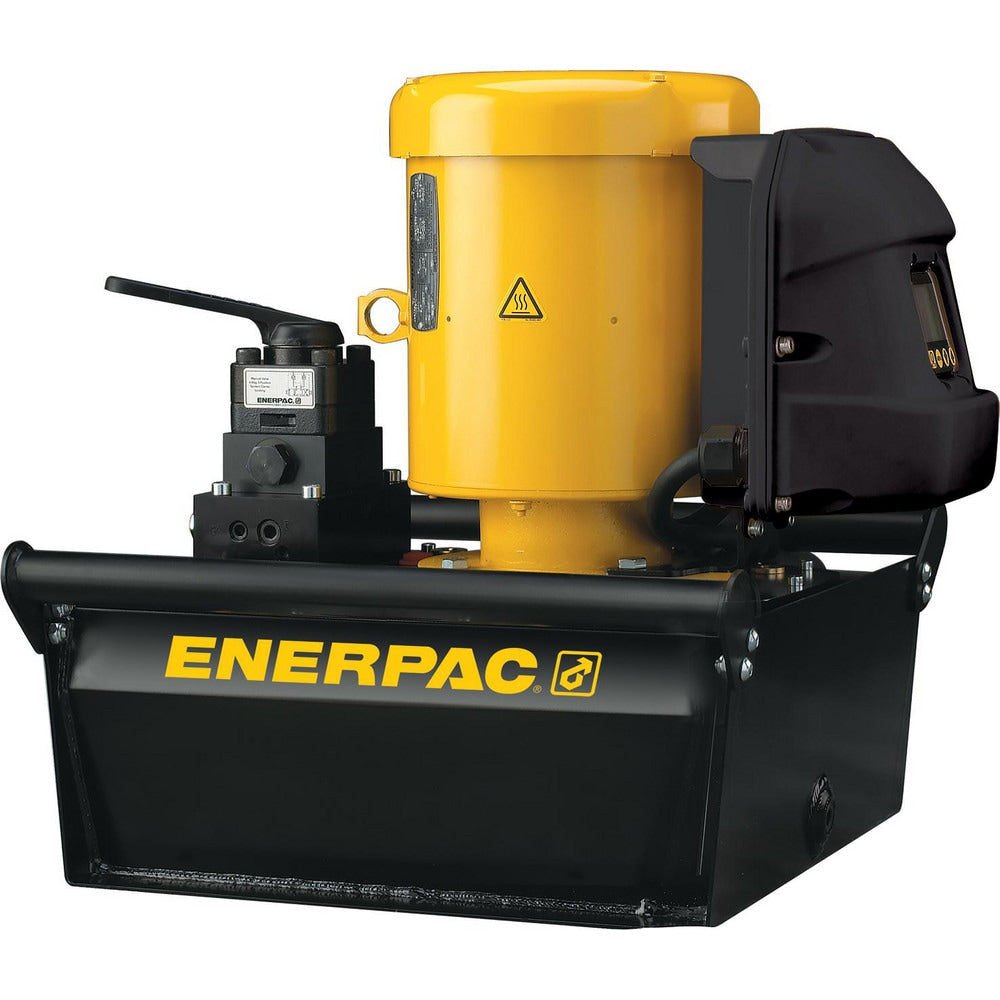

Power Hydraulic Pumps & Jacks; Type: Electric Hydraulic Pump; 1st Stage Pressure Rating: 10000; 2nd Stage Pressure Rating: 10000; Pressure Rating (psi): 10000; Oil Capacity: 5 gal; Actuation: Double Acting; Cylinder Operating Function: Advance, Hold and R
Item #: 03538758
Brand: Enerpac
Model #: ZE5420SG
Product Specifications
| Type | Electric Hydraulic Pump |
| 1st Stage Pressure Rating | 10000 |
| 2nd Stage Pressure Rating | 10000 |
| Pressure Rating (psi) | 10000 |
| Oil Capacity | 5 gal |
| Actuation | Double Acting |
| Cylinder Operating Function | Advance, Hold and Retract |
| Valve Type | Four-Way; Three-Position |
| Adjustable Relief Valve | Yes |
| Includes | Electric Box; LCD |
| Overall Length | 27.90 |
| Overall Width | 20 |
| Overall Height | 24.6 in |
| Usable Oil Capacity | 5 gal |
| Additional Information | Motor Phases: 3 ph; 200-240V; Series: ZE; Motor Speed: 1750 rpm; Sound Level: 75 dBA; Motor Hertz: 50/60 Hz; Operation Type: Solenoid Valve; Duty Cycle: Extended; Thread: 3/4 in NPTF |
| Resovoir Capacity (Cu.In.) | 1201 |
| Used With Cylinders | Double Acting |
| Horse Power | 3 hp |
| UNSPSC Code | 27121800 |
