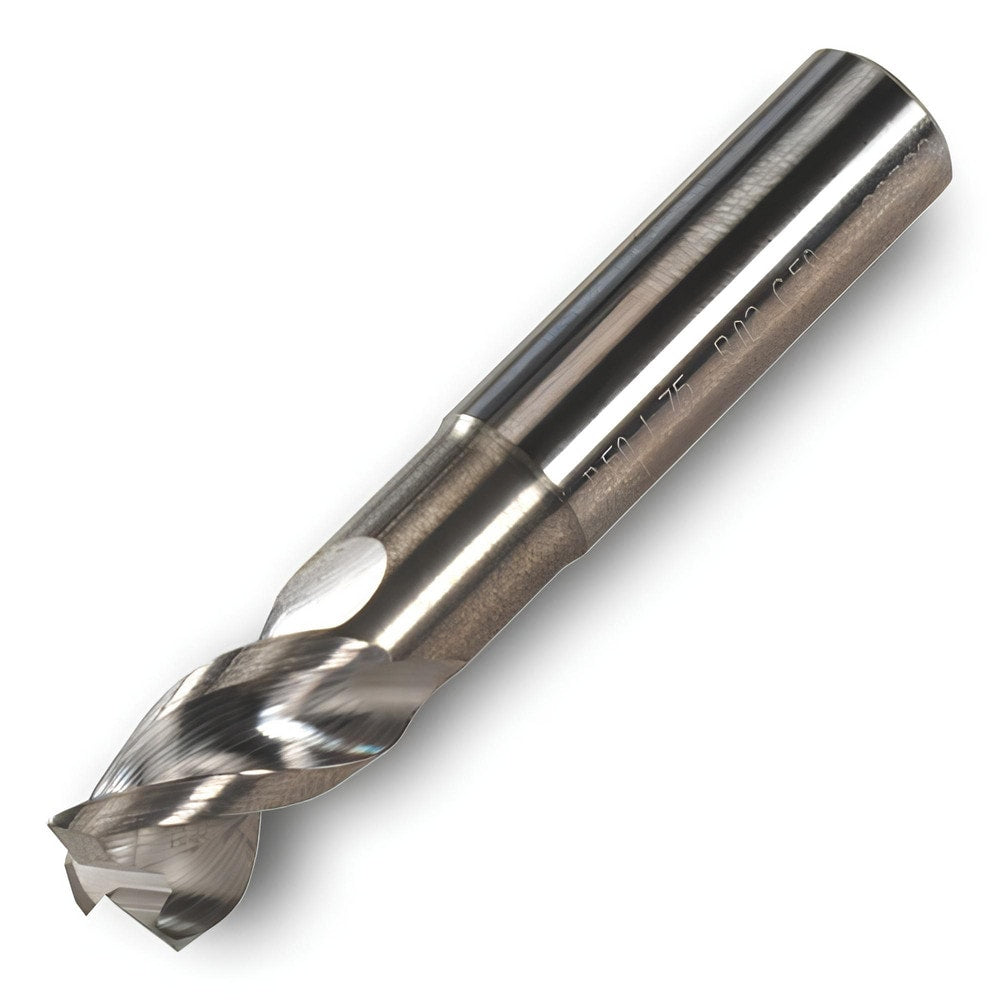

Brand: Ingersoll Cutting Tools / Part #: 2944182
Item #: 99381477
Brand: Ingersoll Cutting Tools
Model #: 2944182
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Corner Radius (mm) | 4.00 |
| Coating/Finish | Bright/Uncoated |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 3 |
| Overall Length (mm) | 110.0000 |
| Length of Cut (mm) | 30.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Direction | Right Hand |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | Medium |
| Flute Type | Variable |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Centercutting | No |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Neck Diameter (mm) | 20.000 |
| Reach Length (mm) | 60.00 |
| Minimum Helix Angle | 39 |
| Maximum Helix Angle | 41 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Material Grade | IN05S |
| Series | 46DRQ |
