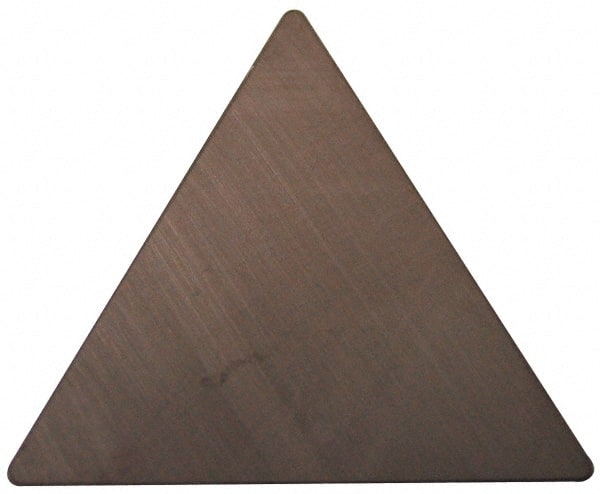

TPG322-T0525 HC2 Ceramic Turning Insert Al2O3/TiC Finish, 3/8″ Inscribed Circle, 1/32″ Corner Radius, 60° Triangle
Item #: 86123338
Brand: NTK
Model #: 5330816
Product Specifications
| Insert Style | TPG |
| Insert Shape Code | T |
| Insert Size Code | 322 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | G |
| Insert Material | Ceramic |
| Manufacturer Grade | HC2 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TPG |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Iso Code | TPGN 160308 T01225 |
| Standards | ISO |
| Chip Breaker | N |
| Coating/Finish | Al2O3; TiC |
