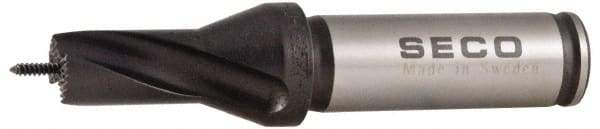

Seco - 15 to 15.99mm Diam, 1.5xD, 0.98" Max Depth, 5/8" Shank Diam, 0.571" Flute, 4.067" OAL, Replaceable Tip Drill - SD100 Insert, SD101 Toolholder, Series SD101
Item #: 86107737
Brand: Seco
Model #: 17615
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SD101 |
| Minimum Drill Diameter (mm) | 15.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 15.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6295 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.9800 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | SD100 |
| Toolholder Style | SD101 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (Decimal Inch) | 0.5710 |
| Body Length (Decimal Inch) | 2.1770 |
| Overall Length (Decimal Inch) | 4.0670 |
| Shank Length (Decimal Inch) | 1.5470 |
