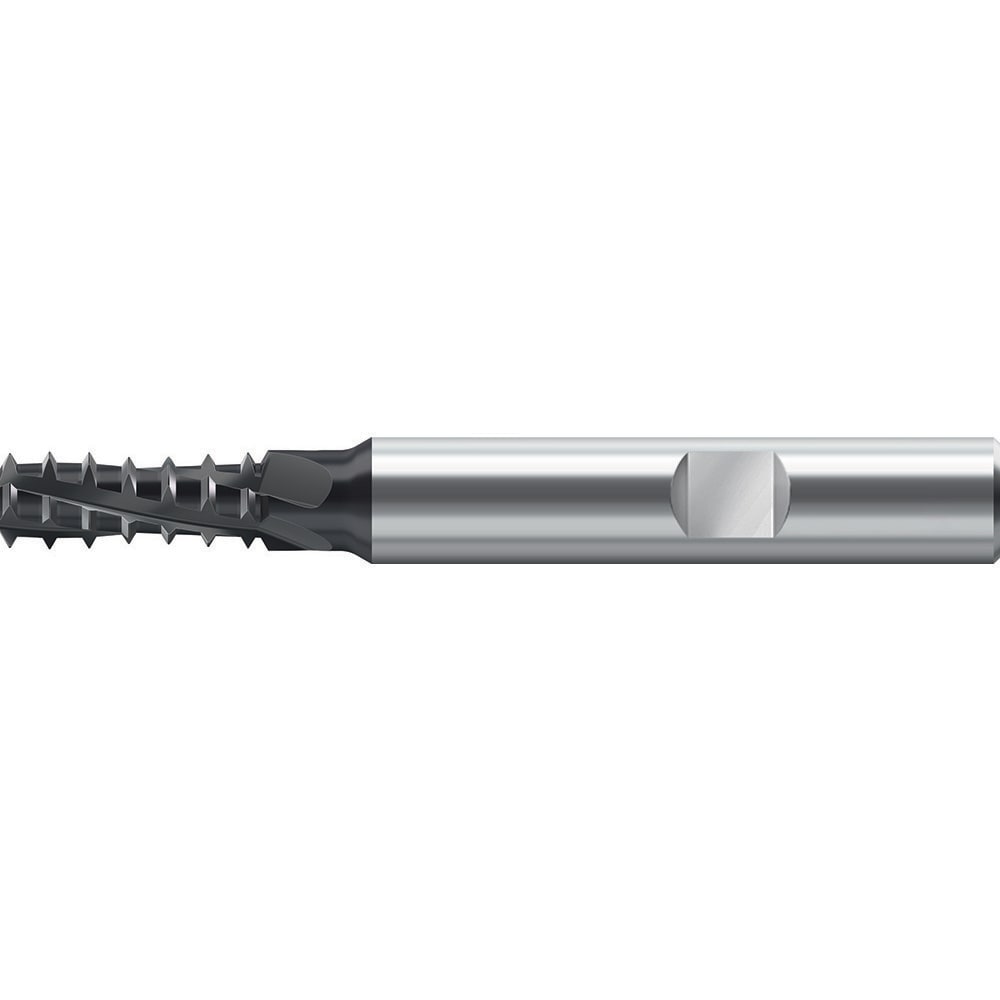

Helical Flute Thread Mill: 9/16-18, Internal, 5 Flute, 12.0000 mm Shank Dia, Solid Carbide
Item #: 53442158
Brand: Walter-Prototyp
Model #: 8117679
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 9/16-18 |
| Thread Type | Internal |
| Shank Diameter (mm) | 12.0000 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Cutting Diameter (mm) | 12.00 |
| Shank Type | Weldon Flat |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1667 |
| Length of Cut (mm) | 29.6300 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.000 |
| Overall Length (mm) | 90.0000 |
| Overall Length (Decimal Inch) | 3.5433 |
| Thread Standard | UNF |
| Flute Direction | Right Hand |
| Series | TC620-UNF-W5D |
| Number Of Flutes | 5 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| Teeth Per Inch | 18 |
| UNSPSC Code | 23242117 |
