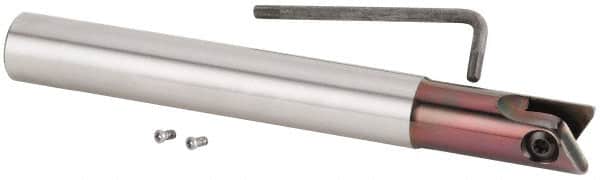

Kennametal - 1" Cutting Diam, 1" Shank Diam, 1" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 1 Insert, KDMT 1000.. Insert, KDMT Toolholder
Item #: 86021326
Brand: Kennametal
Model #: 2958144
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (mm) | 5.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Cutter Inserts | 1 |
| Insert Style | KDMT 1000.. |
| Toolholder Style | KDMT |
| Series | KDMT |
| Overall Length (mm) | 160.02 |
| Overall Length (Decimal Inch) | 6.3000 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 46.99 |
| Head Length (Decimal Inch) | 1.8500 |
| Shank Length (mm) | 113.00 |
| Shank Length (Decimal Inch) | 4.4488 |
| Maximum RPM | 40000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
