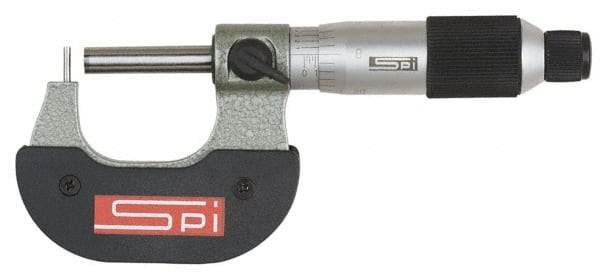

SPI - 0 to 25mm Measurement Range, 0.0001 Inch Graduation, Flat Anvil, Ratchet Stop Thimble, Mechanical Tube Micrometer - 1/4 Inch Spindle Diameter, Accurate Up to 0.0002 Inch, Satin Chrome Finish, Carbide, 0.944 Inch Thorat Depth, Includes Case
Item #: 85956696
Brand: SPI
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Operation Type | Mechanical |
| Minimum Measurement (mm) | 0.00 |
| Maximum Measurement (mm) | 25.00 |
| Digital Counter | No |
| Traceability Certification Included | NIST |
| Throat Depth (Decimal Inch) | 0.9440 |
| Graduation (mm) | 0.01 |
| Graduation (Decimal Inch) | 0.0001 |
| Accuracy (mm) | 0.0060 |
| Accuracy (Decimal Inch) | 0.000240 |
| Thimble Type | Ratchet Stop |
| Spindle Diameter (mm) | 6.35 |
| Spindle Diameter (Decimal Inch) | 0.2500 |
| Anvil Type | Flat |
| Rotating Spindle | No |
| Head Diameter (Decimal Inch) | 0.1900 |
| Finish/Coating | Satin Chrome |
| Measuring Face Material | Carbide |
| Includes | Case |
