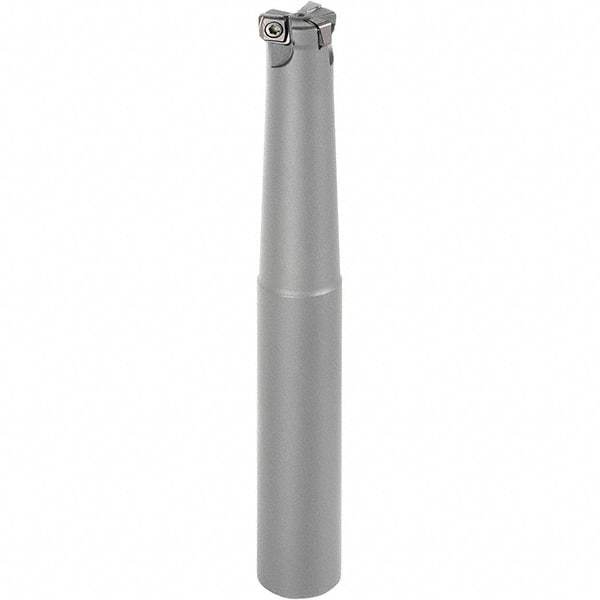

Iscar - 3/4" Cutting Diam, 3/4" Shank Diam, 3/4" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, CNHT, ENHT Insert, E93CN Toolholder
Item #: 85759967
Brand: Iscar
Model #: 3103478
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Cutter Inserts | 3 |
| Insert Style | CNHT; ENHT |
| Toolholder Style | E93CN |
| Series | TorMill |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
