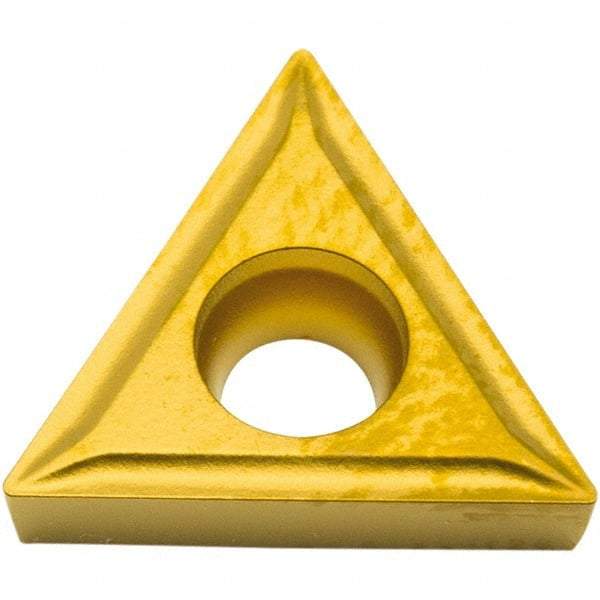

Parlec - TCMT111615 G Grade VN Carbide Boring Insert - TiN Finish, 60° Triangle, 7° Relief Angle, 1/4" Inscr Circle, 0.094" Thick, 0.016" Corner Radius
Item #: 85588713
Brand: Parlec
Model #: T111615VNG
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TCMT |
| Insert Size | 111615 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VN |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating | TiN |
| Chipbreaker | G |
| Hole Diameter (Decimal Inch) | 0.1080 |
| Rake | Positive |
| Relief Angle | 7 |
| Included Angle | 60 |
| Coating Process | PVD |
| Insert Holding Method | Screw |
| Shape | Triangle |
