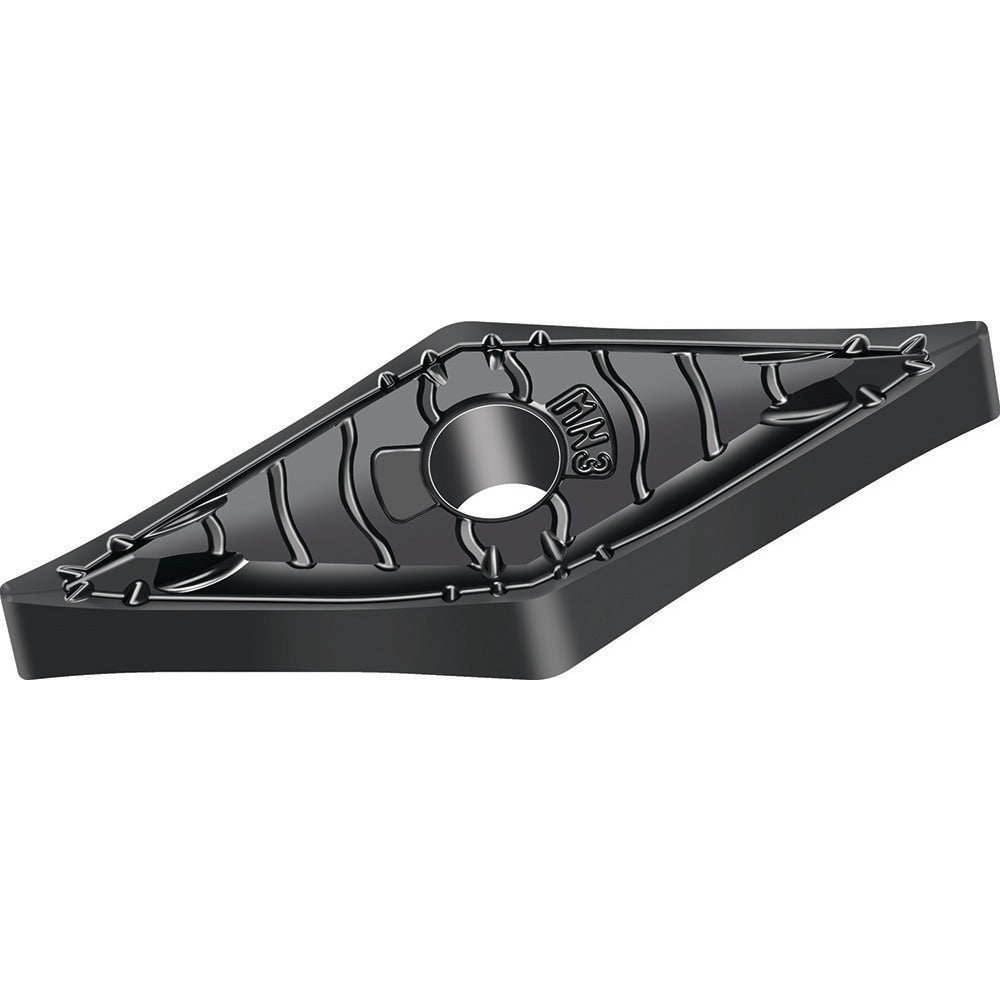

Turning Insert: VNGG331MMN3 WNN10, Carbide
Item #: 17637943
Brand: Walter
Model #: 7778122
Product Specifications
| ANSI Insert Code | VNGG331 |
| ISO Insert Code | VNGG160404 |
| Relief Angle | 0.000 |
| Insert Style | VNGG |
| Corner Radius (mm) | 0.37 |
| Included Angle | 35.00 |
| Manufacturer Grade | WNN10 |
| Coating/Finish | TiAlN/THL |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Series | VNGG |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 35° |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Steel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | V |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.8100 |
| Maximum Depth of Cut (mm) | 3.00 |
| Insert Holding Method | Screw |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Length (mm) | 16.61 |
| Manufacturers Catalog Number | VNGG160404M-MN3 WNN10 |
| Chip Breaker | MN3 |
| Width (mm - 2 Decimals) | 9.53 |
| ANSI Size Code | 331 |
| ISO Size Code | 160404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 16 |
