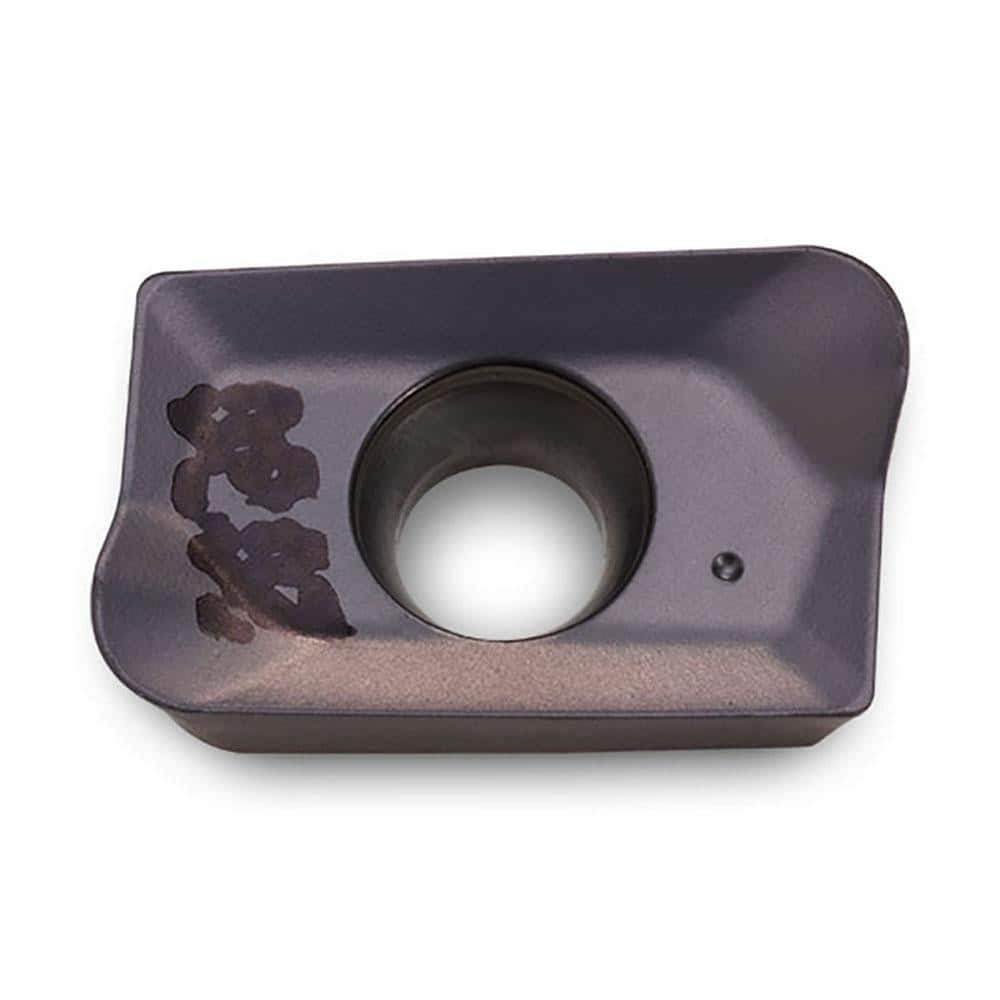

APKT120316R IN2005 Carbide Milling Insert TiAlN Finish, 0.48″ Long x 0.15″ Thick x 0.313″ Wide
Item #: 85533321
Brand: Ingersoll Cutting Tools
Model #: 5804558
Product Specifications
| Insert Style | APKT |
| Insert Size Code | 120316 |
| Insert Size | 120316 |
| Insert Material | Solid Carbide |
| Material Grade | C2 |
| Manufacturer Grade | IN2005 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Decimal Inch) | 0.0620 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Relief Angle | 11.00 |
| Series | APKT12 |
| Coating Process | PVD |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4700 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M |
| Iso Code | APKT120316R |
| Standards | ISO |
| Shape | Parallelogram |
| Coating/Finish | Coated |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3130 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1500 |
| Length (Decimal Inch - 4 Decimals) | 0.4800 |
