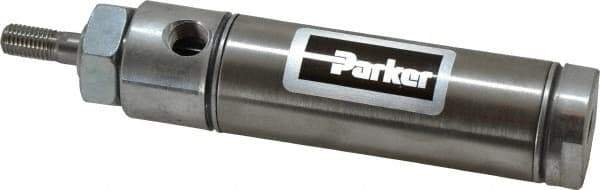

Parker - 1-1/2" Stroke x 1-1/16" Bore Double Acting Air Cylinder - 1/8 Port, 5/16-24 Rod Thread, 250 Max psi, 14 to 140°F
Item #: 85494888
Brand: Parker
Model #: 1.06DSRM01.50
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (Inch) | 1-1/16 |
| Bore Size (Decimal Inch) | 1.06 |
| Rod Diameter (Decimal Inch) | 0.312 |
| Stroke Length (Inch) | 1-1/2 |
| Mounting Style | Front Nose Mount |
| Port Size | 1/8 |
| Port Type | NPTF |
| Length (Decimal Inch) | 5.410 |
| Material | Stainless Steel |
| Seal Material | Buna-N |
| Maximum Working Pressure (psi) | 250 |
| Rod Thread Size | 5/16-24 |
| Style | Male |
