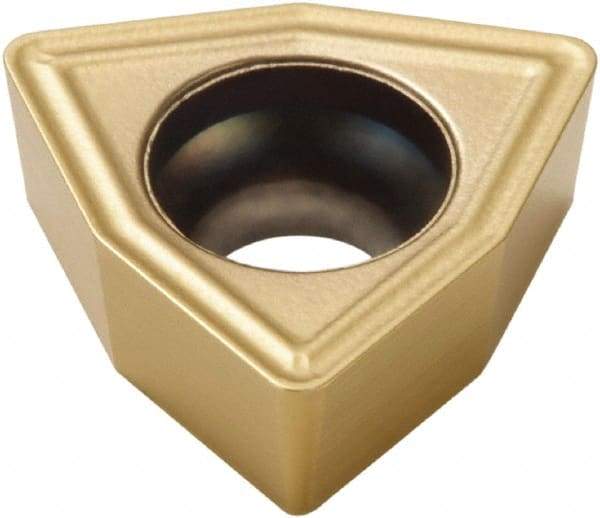

Seco - WCMX04 Grade TP400D Carbide Indexable Drill Insert - Trigon, 1/4" Inscribed Circle
Item #: 85331429
Brand: Seco
Model #: 24137
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 04 |
| Material | Carbide |
| Manufacturer's Grade | TP400D |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 2.38 |
| Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Trigon |
| Relief Angle | 7 |
